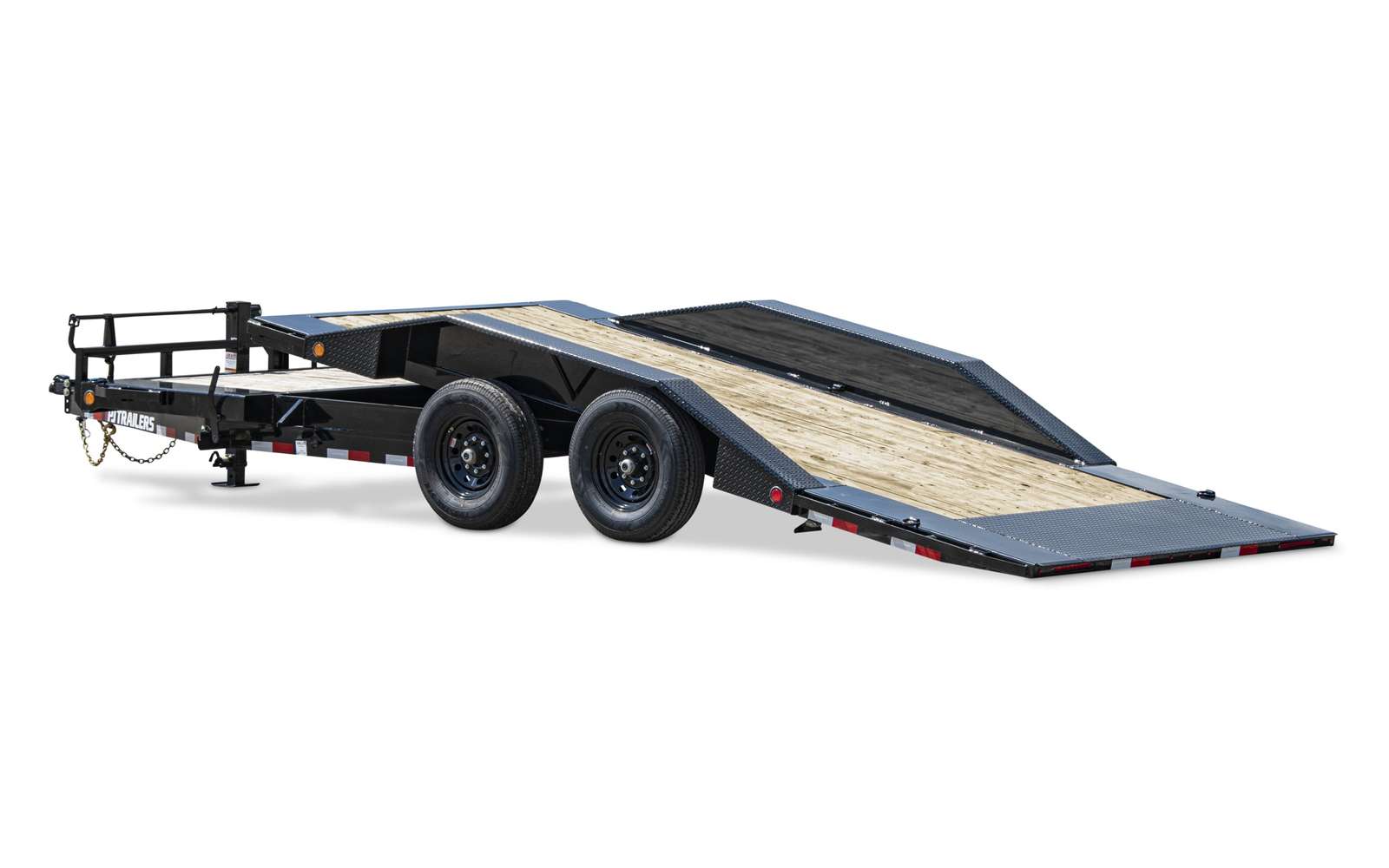

6" Channel Super-Wide Tilt (TS)
Looking for a trailer that proctorizes easy loading and unloading, but with an extra wide deck?
Then look no further than the 6" Channel Super-Wide Tilt Trailer (TS). Spacious and sturdy with an extra wide 102" tilt deck, the TS is constructed to safely and securely haul heavier cargo and equipment with its 7K torsion axles and forward self-adjusting brakes. And when dealing with large loads, it’s easy to nick and dent fenders, right? Not with the TS—outfitted to stand up to daily punishment with diamond plated fenders. Ready to find out what drives you?
What Drives You, Drives Us
Trailer Specifications
102" Deck Width
20' – 24' Deck Lengths
14,000 lbs GVWR
10,080—11,100 lbs Load Capacity
| Standard Feature | Click + for Options |
|---|---|
| Axles |
[72BT] (2) 7,000# Electric / Torsion
Available Options |
| Suspension | Torsion Suspension |
| Tongue | 6" Channel Wrapped Tongue |
| Coupler |
[J] BP 2-5/16" Adjustable- Demco EZ-Latch
Available Options |
| Safety Chains | 5/16" Grade 70 Safety Chain w/Clevis hook (2 each) |
| Jack |
Drop Leg Jack (10,000lb)
Available Options |
| Frame |
6" Channel Frame
Available Options |
| Cross-Members | 3" Channel Crossmembers on 16" Centers |
| Bump Rail | Front Bump Rail |
| Floor |
2" Treated Pine Lumber Deck
Available Options |
| Fenders |
10" X 132" Drive-over 1/4" Diamond Plate Steel Fenders
Available Options |
| Stake Pockets |
Stake Pockets along both sides (Quantity depends on length)
Available Options |
| Lights |
Available Options |
| Wiring | All-Weather Wiring Harness (7-way RV) |
| Tires | ST235/80R16 Radial Tires 10 ply (3,520 lbs.) |
| Paint Color |
[K] Black Powder Coat
Available Options |
| Tilt Deck Dimensions | 102" x 16' Wide Tiltable Deck (all lengths) |
| Rubrail | 2" Rubrail |
| Tie-Downs |
(6) Flushmount D-rings
Available Options |
| Breakaway System | Electric Breakaway System w/ Charger |
| Battery |
Available Options |
| Hydraulics |
Hydraulic - Cushioned Gravity tilt
Available Options |
| Storage |
Available Options |
| Cargo Winch |
Available Options |
| Pipe Chain Spools | Pipe Spools |
| Tilt Deck Angle | 11° |
| Tail | [T] 16' Tilt Deck |
| Lift Cylinder | 3" x 16" Cylinder |
| Other Options |
Available Options |
| Model | Pull Type | GVWR | Empty Weight | Deck Length | Deck Width | Tongue Length |
|---|---|---|---|---|---|---|
| TS (20') | Bumperpull | 14000 lbs | 3920 lbs | 20 | 102" | 5' (60") |
| TS (22') | Bumperpull | 14000 lbs | 4260 lbs | 22 | 102" | 5' (60") |
| TS (24') | Bumperpull | 14000 lbs | 4580 lbs | 24 | 102" | 5' (60") |
WARNING: This product can expose you to chemicals including Arsenic (inorganic arsenic compounds) which is known to the State of California to cause cancer and Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
