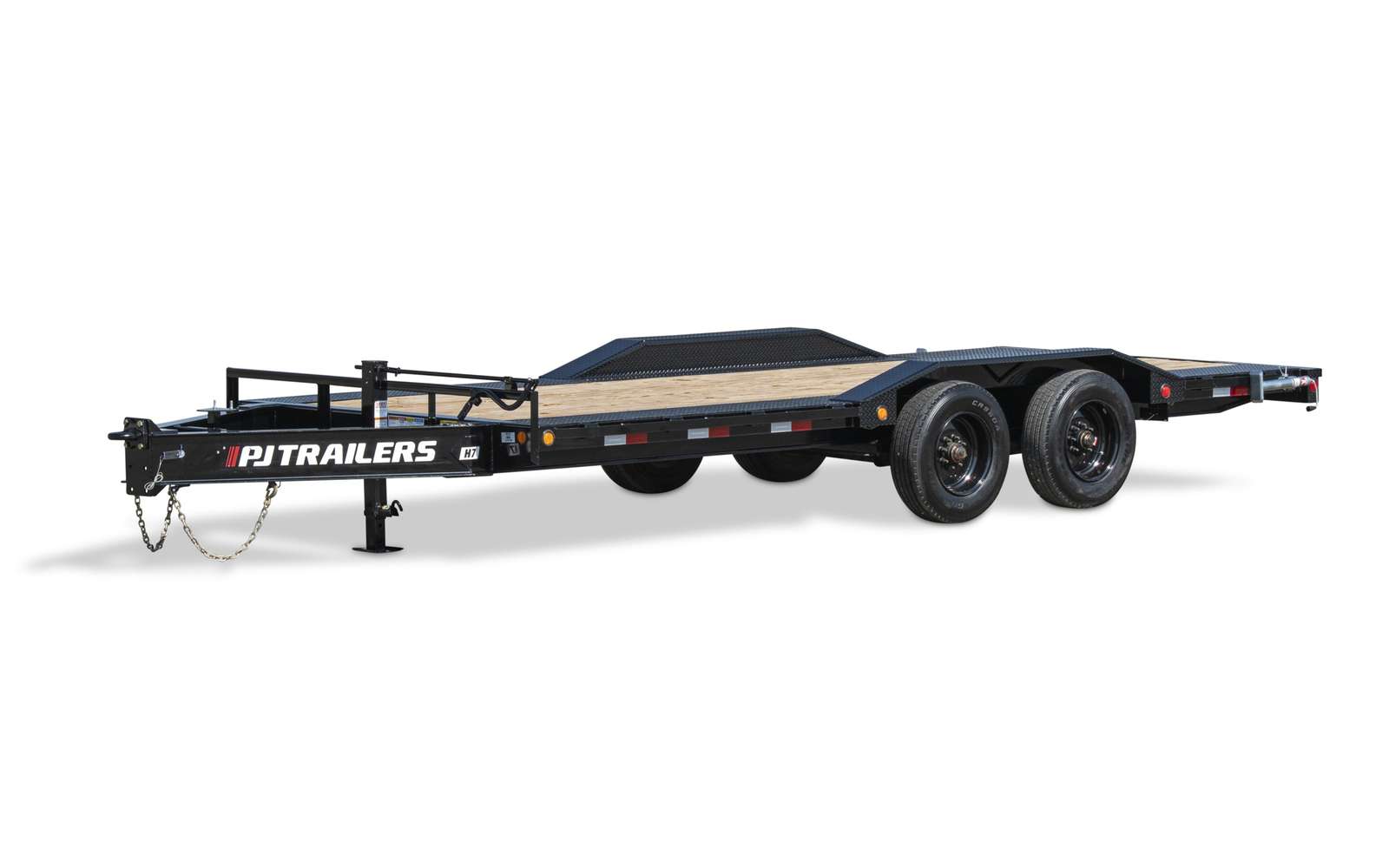

10" Pro-Beam™ Super-Wide Equipment (H7)


When you’re hauling extra wide loads, you need an extra wide trailer like the 10" Pro-Beam™ Super-Wide Equipment Trailer (H7).

However, those big, hefty, and bulky loads are typically difficult and challenging to unload and load, and that’s where the H7 changes the game. Featuring torsion drop axles that effectively deliver a lower deck height for improved loading, we combine this advanced suspension technology with a 10’’ frame beam (and 102’’ super-wide deck in front and behind the fenders) to create a loading surface that’s perfect for heavy equipment and vehicles—without compromise.

Trailer Specifications

102" Deck Width

24 – 26' Deck Lengths

20,000 lbs GVWR

12,000—16,600 lbs Load Capacity

Model Pull Type GVWR Empty Weight Bed Length Bed Width Tongue Length
H7 (24') Pintle 20000 lbs 5760 lbs 24 102" 5' 6" (66")
H7 (22') Pintle 20000 lbs 5600 lbs 22 102" 5' 6" (66")
H7 (20') Pintle 20000 lbs 5440 lbs 20 102" 5' 6" (66")
H7 (18') Pintle 20000 lbs 5280 lbs 18 102" 5' 6" (66")
H7 (32') Pintle 20000 lbs 6400 lbs 32 102" 5' 6" (66")
H7 (30') Pintle 20000 lbs 6240 lbs 30 102" 5' 6" (66")
H7 (28') Pintle 20000 lbs 6080 lbs 28 102" 5' 6" (66")
H7 (26') Pintle 20000 lbs 5920 lbs 26 102" 5' 6" (66")

Standard Feature Click + for Options
Axles [S2BT] 2) 10,000# w/235/75R17.5" LR-J Single T&W Electric / Torsion

Available Options

[S2BT] (2) 10,000# w/235/75R17.5" LR-J Single T&W Electric / Torsion [S2GT] (2) 10,000# w/235/75R17.5" LR-J Single T&W Elec/Hyd Drum (1,000 PSI Pump) / Torsion

Suspension Torsion Suspension
Tongue 10" I-beam Tongue
Coupler [P] 3" Pintle Eye - Face-Mount (36,000 lb.)

Available Options

[B] BP 2-5/16" Adjustable Rigid Mount (25,000 lb.) [P] 3" Pintle Eye - Face-Mount (36,000 lb.) [R] GN 2-5/16" Round (25,000 lb.) w/ Toolbox [S] GN 2-5/16" Square (25,000 lb.) w/ Toolbox

Safety Chains 3/8" Grade 70 Safety Chain w/Clevis hook (2 each)
Jack Drop Leg Jack (10,000lb)

Available Options

[-JA02] 2-Speed Gooseneck Jack Upgrade (12,000 lb.) [-JA04] Upgrade to Single 10k Jack (BP Only) [-JA05] 1 Hyd. Monster Jack™ (BP Only) [-JA06] 2 Hydraulic Monster Jacks™ (GN Upgrade) [-JA13] Rear Trailer Support Jacks [-JA16] Upgrade to Dual 10k Jacks [-JA17] Single 2-speed Jack (12,000 lb.) (BP Only) [-JA19] 2 Hydraulic Jacks for BP [-JA21] Dual Jacks for BP

Frame 10" x 19 lb. I-Beam Main Frame

Available Options

[-CM12] 12" OC Crossmembers

Cross-Members 3" Channel Crossmembers on 16" Centers
Bump Rail Front Bump Rail
Floor APEX Fortified Lumber

Available Options

[-BWFT] Blackwood Pro Full Deck (Tail Only) [-SF03] 11ga DP Steel Floor on Dovetail [-BWOD] Blackwood Pro Outer Deck [-BWFD] Blackwood Pro Full Deck [-FLRO] Rough Oak Floor [-FLNF] No Flooring [-SF01] 11ga (1/8") DP Steel Floor w/ Flushmount D-Rings & 12" OC [-SF04] 3/16" DP Steel Floor w/ Flushmount D-Rings & 12" OC

Fenders HD Drive Over 1/4" Diamond Plate Fenders

Available Options

[-FE01] 1/4" DP HD Weld on Fenders Tandem Axle

Ramps 5' Slide-In Channel Ramps
Stake Pockets Stake Pockets along both sides (Quantity depends on length)

Available Options

[-2SPF] 2 Stake Pockets In Front of Trailer

Lights

Available Options

[-LT10] GN Light Bar w/ 4 Lights (GN Only)

Wiring All-Weather Wiring Harness (7-way RV)
Tires ST235/75/R17.5 Radial Tires 18 ply (6,005 lbs.)
Paint Color [K] Black Powder Coat

Available Options

[K] Black Powder Coat [1] Primer + Red Powder Coat (Texas Only) [3] Primer + White Powder Coat (Texas Only) [5] Primer + Tractor Orange Powder Coat (Texas Only) [6] Primer + Grey Powder Coat (Texas Only) [8] Primer + Desert Tan Powder Coat (Texas Only) [P] Primer Only [Z] No Paint No Primer

Rubrail 2" Rubrail
Tie-Downs (6) D-rings

Available Options

[-DR01] 1 Extra Pair D-Rings [-DR21] 1 Extra Pair Flushmount D-Rings

Breakaway System Electric Breakaway Kit w/ Charger
Battery

Available Options

[-BYSC] Solar Battery Charger

Storage

Available Options

[-GNC2] 2 GN Lockable Chain Holders [-GNCH] GN Lockable Chain Holder [-TB02] Top Riser Toolbox [-TB03] Full Size Divided Toolbox Upgrade [-TB05] Front Toolbox

Cargo Winch

Available Options

[-WN01] Plate for Winch (BP Only) [-WN02] HD GN Winch Plate [-WN03] Winch Plate w/ Welded Receiver Hitch [-WN04] Gooseneck Winch Plate [-WN12] Winch 12K w/Plate & Battery [-WN18] Winch 17.5K w/HD Plate & Battery [-WN95] Winch 9.5k w/ Plate & Battery [-WNRR] Roller on Rear of Deck for Winch Cable

Pipe Chain Spools Pipe Spools
Tail [S] Straight Deck w/ 5' Rear Slide-in Ramps

Available Options

[5] 3.5' Dovetail w/2 Monster Ramp [D] 2' Dovetail w/ 31 x 66 HD Fold-up Ramps

Axle Configuration S2BT

Available Options

S2BT

Other Options

Available Options

[-FR01] Fork Rack
