Seamless I-Beam Equipment Trailer (EV)


Introducing the Seamless I-Beam Equipment Trailer (EV) from PJ Trailers, part of the all-new Voyager Series.

Designed for professionals who demand durability and innovation, this trailer incorporates the cutting-edge HaulGuard fenders by Minimizer and is equipped with APEX Fortified Lumber, ensuring the deck remains resilient under the toughest conditions. The EV also revolutionizes loading and unloading with its optional Self-Stabilizing Monster Ramps, alongside other customizable ramp solutions, providing unparalleled flexibility and safety for any hauling need.

Trailer Specifications

83" Deck Width

24' – 16'' Deck Lengths

15,400 lbs GVWR

11,760—14,220 lbs Load Capacity

Model Pull Type GVWR Empty Weight Bed Length Bed Width Tongue Length
EV (24') Bumperpull 15400 lbs 3,480 lbs. lbs 24' 83" 4'
EV (22') Bumperpull 15400 lbs 3,300 lbs. lbs 22' 83" 4'
EV (20') Bumperpull 15400 lbs 3,150 lbs. lbs 20' 83" 4'
EV (18') Bumperpull 15400 lbs 3,020 lbs. lbs 16' 83" 4'
EV (16') Bumperpull 15400 lbs 2,860 lbs. lbs 16' 83" 4'

Standard Feature Click + for Options
Axles

Available Options

[72BS] (2) 7,000# Electric / Spring [82BS] (2) 8,000# Oil Bath w/14 Ply LR-G Tires Electric / Spring [92BS] (2) 7,000# w/14 Ply LR-G Tires Electric / Spring

Suspension 6-Leaf Slipper Spring Suspension
Tongue 8" x 10 lb. I-beam Tongue
Coupler [J] BP 2-5/16" Adjustable

Available Options

[P] 3" Pintle Eye - Channel-Mount (20,000 lb.) [T] BP 2-5/16" Adjustable Coupler (20,000 lb.) w/HD 6-Hole Channel Bracket

Jack Drop Leg Jack (12,000 lb.)
Frame 8" x 10 lb. I-Beam Main Frame
Cross-Members 3" Channel Crossmembers on 16" Centers
Floor APEX Fortified Lumber

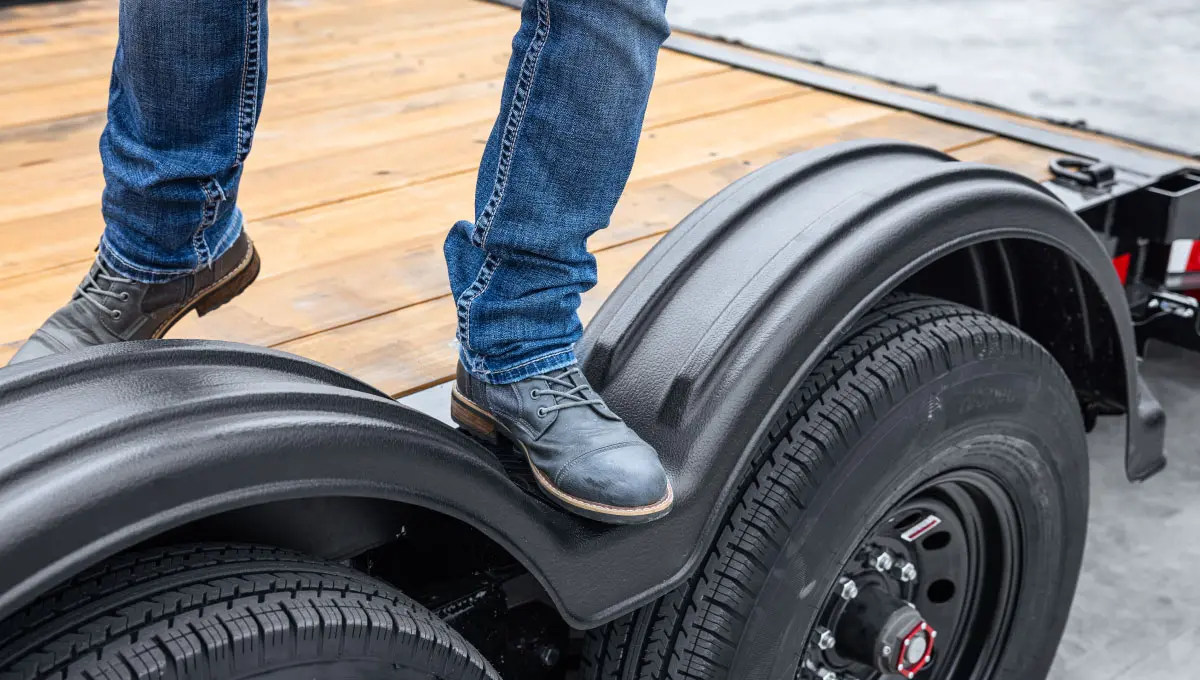

Fenders Haulguard ™ Composite Fenders
Stake Pockets Stake Pockets along both sides (Quantity depends on length)
Lights DOT Approved Flushmount Lifetime LED Lights
Wiring All-Weather Wiring Harness (7-way RV)
Tires 235/80R16 Radial Tires (3,520 lb)
Paint Color [K] Black Powder Coat

Available Options

[0] Primer + Black Powder Coat (Texas Only) [1] Primer + Red Powder Coat (Texas Only) [3] Primer + White Powder Coat (Texas Only) [5] Primer + Tractor Orange Powder Coat (Texas Only) [6] Primer + Grey Powder Coat (Texas Only) [8] Primer + Desert Tan Powder Coat (Texas Only) [P] Primer Only [Z] No Paint No Primer

Rubrail 2" Rubrail
Tie-Downs (6) D-rings

Available Options

[-DR01] 1 Extra Pair D-Rings

Breakaway System Electric Breakaway Kit w/ Charger
Steps Monster Steps (Both Sides)
Storage Full-Tongue Locking Toolbox w/ Exterior Lashing Points
Cargo Winch

Available Options

[-WN01] Plate for Winch (BP Only)

Tail [E] 3.5' Dovetail w/ 5' Fold-up Ramps
Axle Configuration 72BS

Available Options

92BS 82BS

Other Options

Available Options

[-FR01] Fork Rack [-GV09] 9,900 G.V.W.R.
