Voyager Dump (DV)

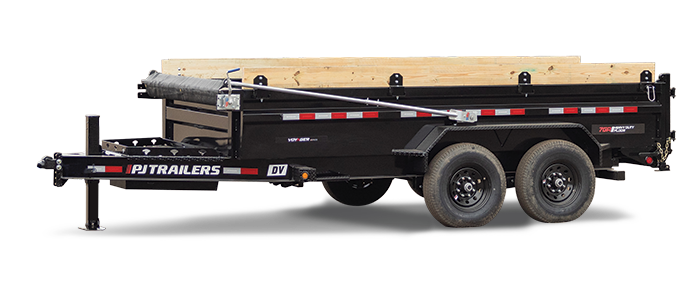

The PJ Trailers Voyager Dump Trailer (DV) is a heavy-duty bumper-pull dump trailer designed for professionals who need to move equipment, bulk materials, and jobsite debris with a single versatile trailer. With an 83-inch-wide bed, available 14-foot and 16-foot lengths, a 15,400-pound Gross Vehicle Weight Rating (GVWR), and load capacities ranging from approximately 10,770 to 11,220 pounds, the Voyager is built for construction, landscaping, equipment hauling, agricultural work, and property maintenance.

The DV combines a seamless 8-inch I-beam frame and tongue with a 7-gauge steel bed, dual 7,000-pound axles, integrated equipment ramps, welded D-rings, and a powerful scissor-lift hydraulic system. It also features one of its most useful jobsite conveniences: the spring-loaded swing arm tarp, designed to make covering large loads faster and easier for a single operator.

Spring-Loaded Swing Arm Tarp for Faster Load Coverage

The spring-loaded swing arm tarp is a major feature of the Voyager Dump Trailer and is especially valuable for operators who regularly haul loose material. Instead of manually wrestling a tarp across the bed, the swing arm system is designed to help one person quickly pull the tarp over the load.

That can make a meaningful difference when hauling dirt, gravel, aggregate, brush, demolition debris, or other material that needs to be covered before traveling on public roads.

For contractors moving between several jobs per day, the ability to secure a load quickly can save time and reduce repetitive manual work between trips. The spring-loaded system also makes the tarp easier to manage when the trailer is carrying bulky or uneven material.

Heavy-Duty Construction for Demanding Jobs

The Voyager uses an 8-inch formed I-beam main frame paired with an 8-inch I-beam tongue, giving the trailer a strong structural foundation for regular commercial use. Three-inch channel crossmembers spaced at 16-inch centers support the dump body, while the 7-gauge steel bed is built to withstand contact with heavy material and equipment.

Two 7,000-pound axles with 14-ply Load Range G radial tires support the trailer's 15,400-pound GVWR. Six-leaf slipper spring suspension helps distribute loads across the tandem-axle setup, while electric brakes enable controlled towing under heavier loads.

The combination makes the DV well-suited for businesses that need a dump trailer capable of handling frequent hauling rather than occasional residential use.

Built to Haul Equipment as Well as Material

The Voyager is not limited to dirt and debris. Standard 6-foot 5-inch slide-in channel ramps allow operators to load equipment directly into the dump bed.

Four D-rings welded inside the box provide strong securement points for machinery and cargo. This makes the DV useful for transporting skid steers, compact construction equipment, landscaping machines, and other equipment that fits within the trailer's dimensions and rated capacity.

Rear stabilizer stands provide additional support during loading, helping create a more stable platform when equipment moves onto or off the trailer.

The ability to carry equipment to a jobsite and then use the same trailer for debris or material removal afterward gives the Voyager significant flexibility for contractors.

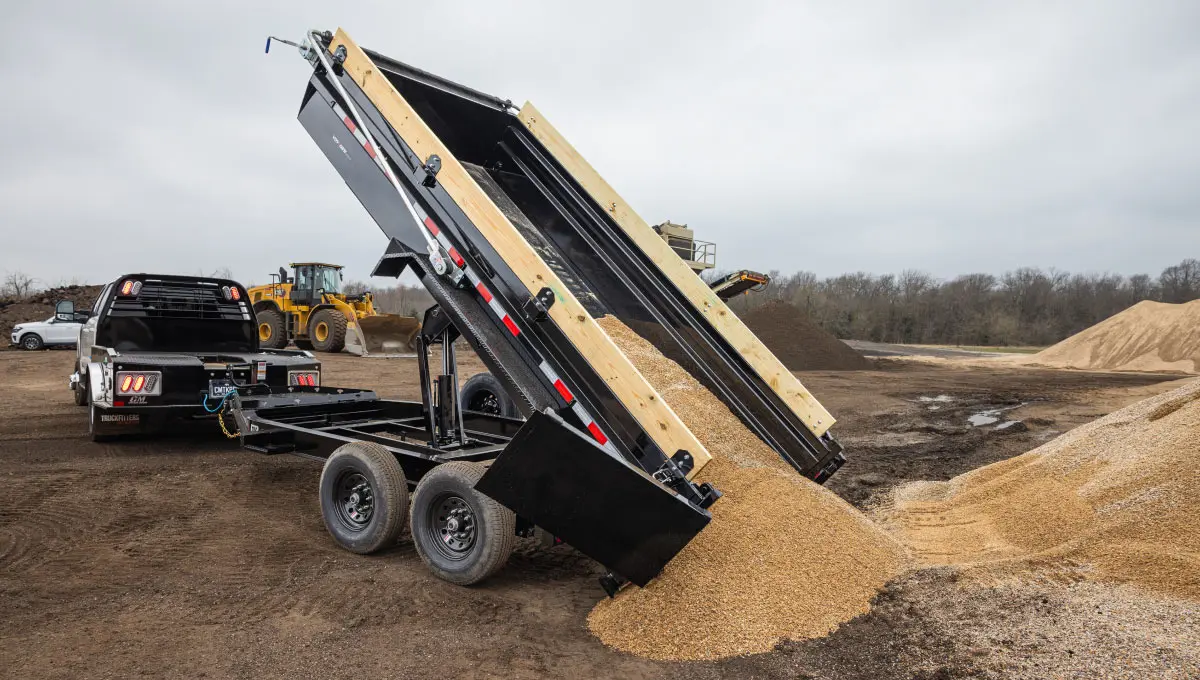

Scissor-Lift Hydraulic Dump System

The DV uses a scissor-lift hydraulic system designed to provide a stable lifting platform through the dump cycle. The hydraulic system includes power-up, power-down, and gravity-down functionality, giving operators control over both raising and lowering the bed.

A 12V deep-cycle battery powers the hydraulic system, and an integrated 110V trickle charger helps maintain the battery between uses. An additional battery or solar charging system can also be configured when needed.

The rear of the trailer uses a two-way dump gate that can operate as both barn doors and a spreader gate. This allows operators to choose an unloading method based on the type of material being hauled.

Monster-Sized Toolbox for Jobsite Storage

The Voyager also features a lockable full-tongue toolbox that houses the battery and hydraulic pump while leaving additional room for tools, chains, straps, binders, and other hauling equipment.

Keeping those items on the trailer reduces the need to move essential cargo-control equipment between trucks or search for straps and chains when loading machinery. The box features a heavy-duty latch and is designed to meet the practical storage needs of contractors and equipment operators.

Combined with the spring-loaded tarp, ramps, hydraulic jack, equipment tie-downs, and large dump bed, the Voyager is built as a complete work trailer rather than simply a dump box on wheels.

What sizes does the PJ Voyager Dump Trailer come in?

The Voyager has an 83-inch bed width and is available with 14-foot and 16-foot bed lengths.

What is the GVWR of the Voyager DV?

The DV has a 15,400-pound GVWR.

How much can the Voyager Dump Trailer carry?

Depending on bed length, the DV provides approximately 10,770 to 11,220 pounds of load capacity.

Does the Voyager Dump Trailer have a tarp?

Yes. The DV features a spring-loaded swing-arm tarp designed so that one operator can quickly cover bulky or loose loads.

Does the PJ Voyager come with ramps?

Yes. The trailer includes 6-foot 5-inch slide-in channel ramps for loading equipment.

Can the Voyager haul equipment?

Yes. The ramps, welded D-rings, rear stabilizers, and heavy-duty structure make the Voyager suitable for equipment hauling within the trailer's rated capacities.
