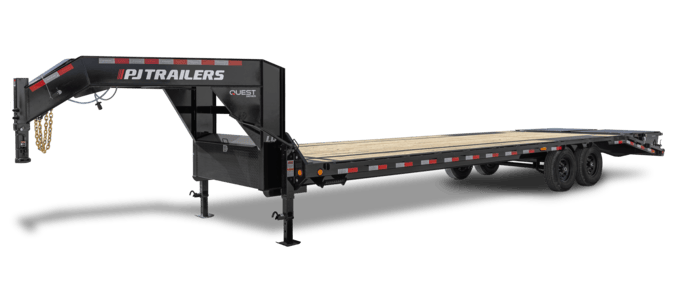

Quest Flatdeck With Singles (LQ)
Precision Meets Purpose
The PJ LQ is engineered for pros who demand more from their equipment — more durability, more versatility, more control. Born with field-tested performance, the LQ is a purpose-built trailer designed to handle the toughest loads with unmatched precision. As part of the feature focused Quest Line, the LQ is built to solve real problems and elevate everyday performance.
What Drives You, Drives Us™
Trailer Specifications
102 Deck Width
25' – 32' Deck Lengths
15,900 lbs GVWR
11,200—11,700 lbs Load Capacity
| Standard Feature | Click + for Options |
|---|---|
| Axles |
[72BS] (2) 7,000# Electric / Spring
Available Options |
| Suspension | 6-Leaf Slipper Spring Suspension |
| Tongue | 12" x 19 lb. I-beam Tongue (ProBeam™) |
| Coupler |

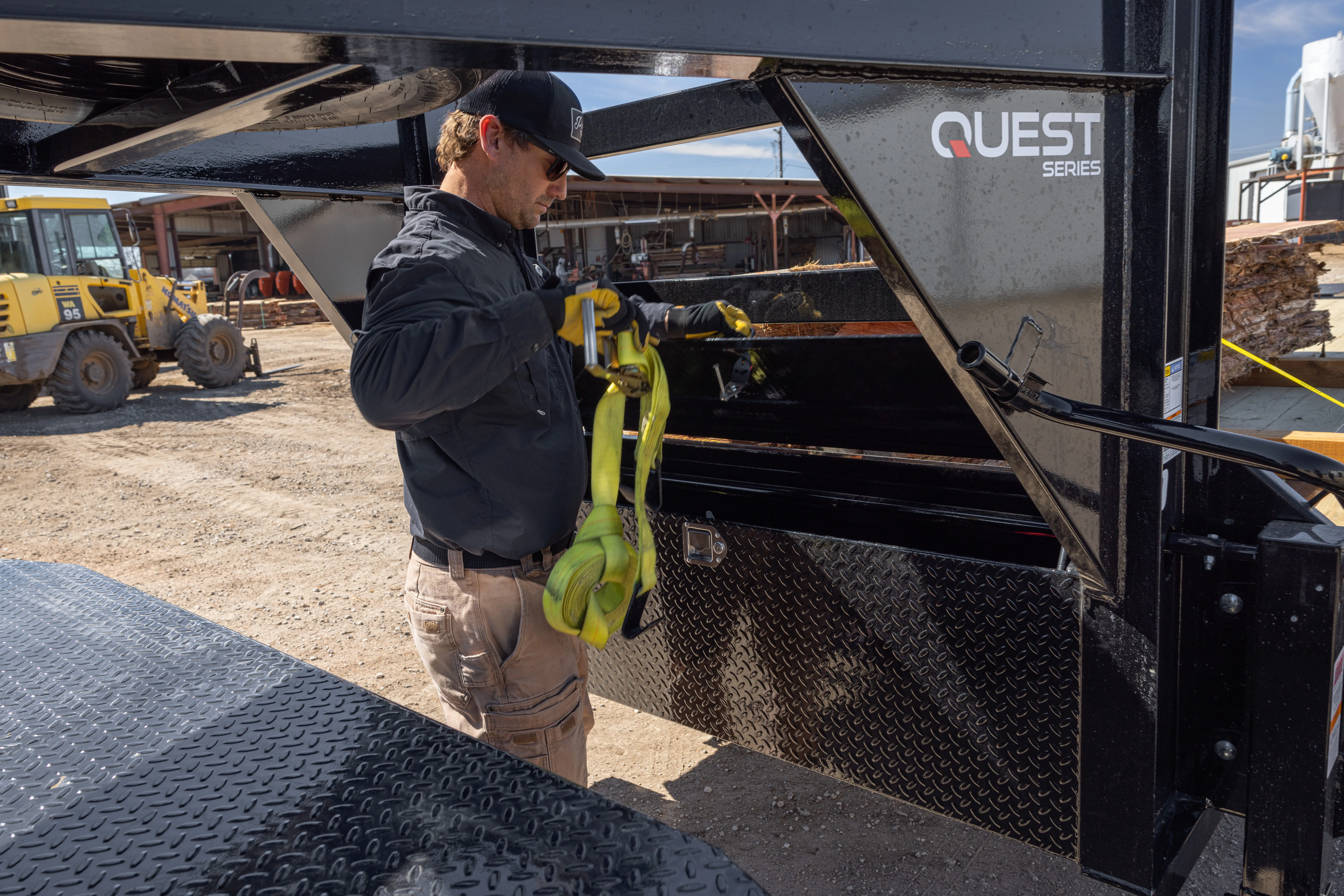

[R] GN 2-5/16" Round (25,000 lb.) w/ Toolbox
Available Options |
| Safety Chains | 3/8" Grade 70 w/ Safety Latch Hook (2 ea) |
| Jack |

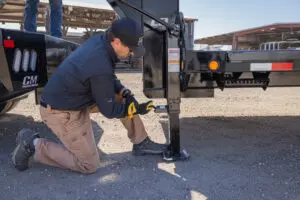

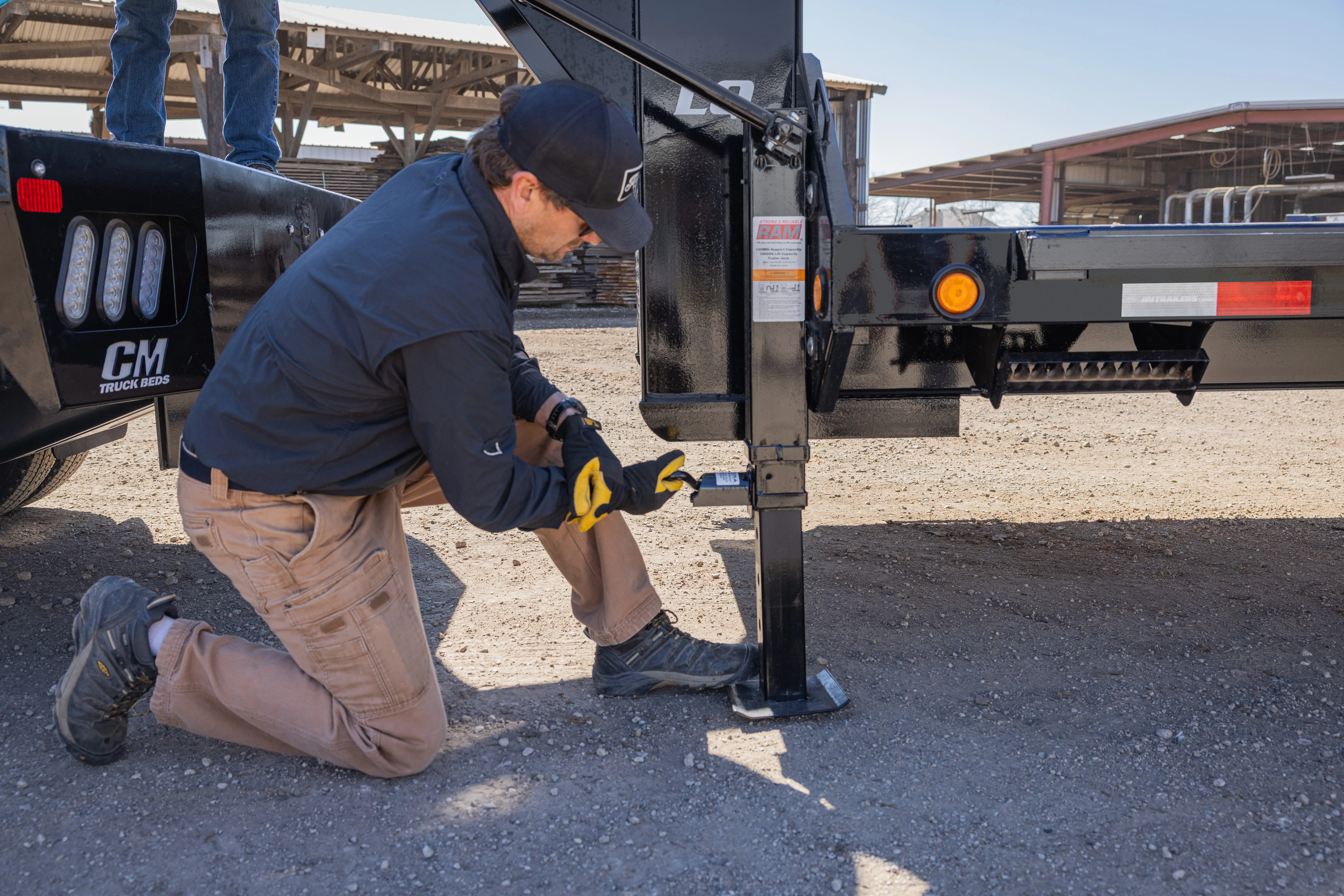

(2) Drop Leg Jacks (10,000 lb.)
Available Options |
| Frame | 12" x 14 lb. I-Beam Main Frame |
| Cross-Members | 3” Channel Crossmembers 16” oc |
| Floor | 2" Treated Pine Lumber Deck |

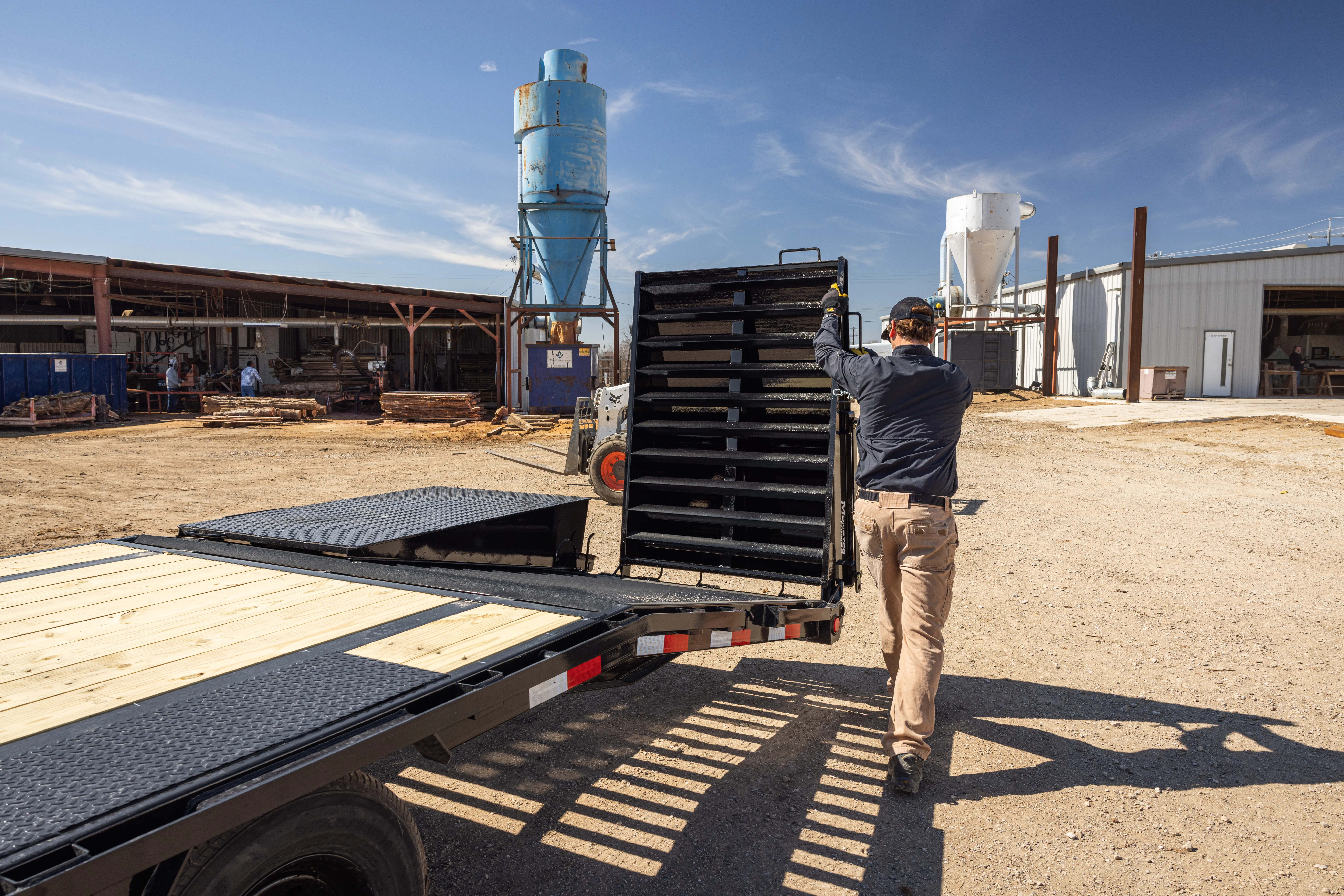

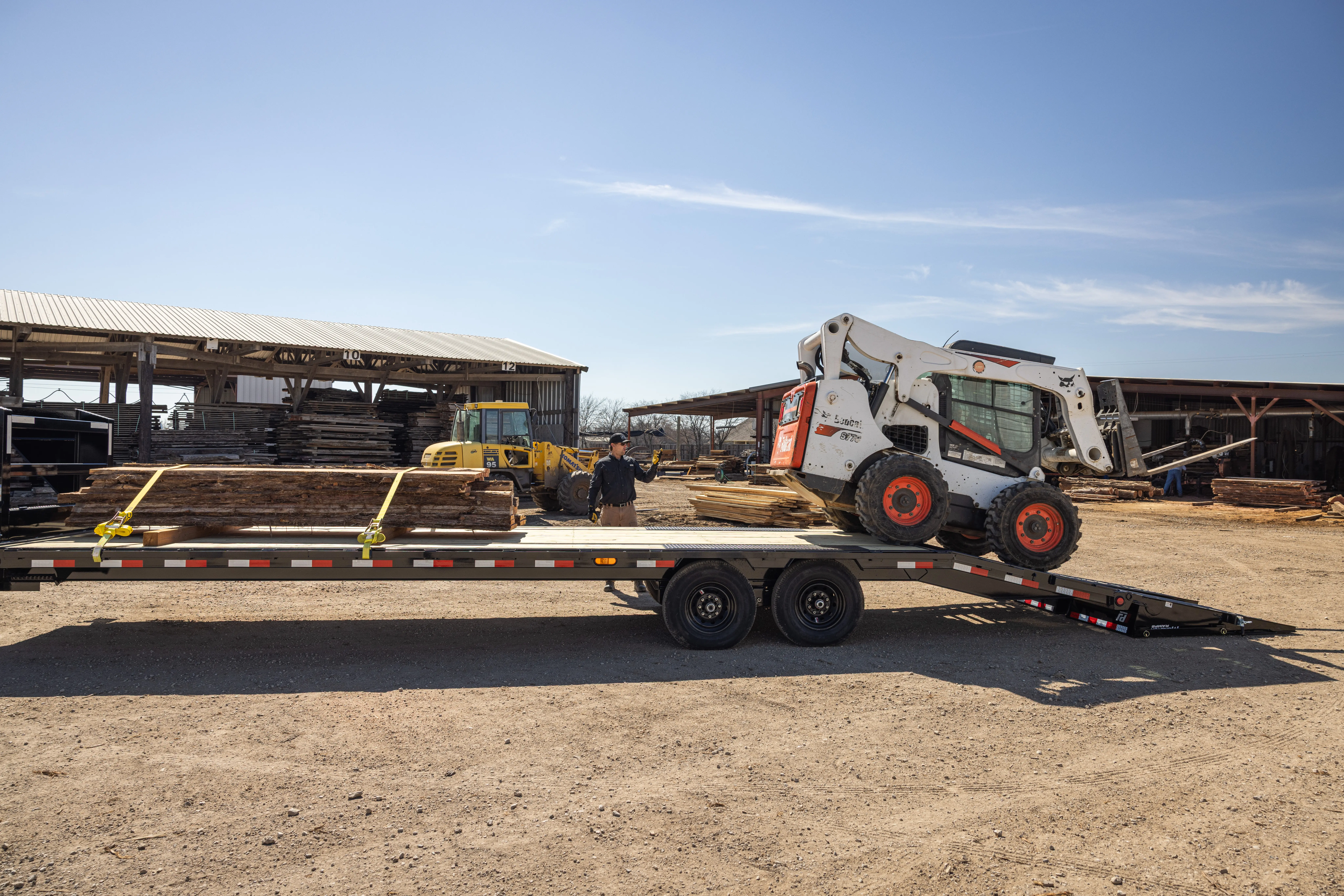

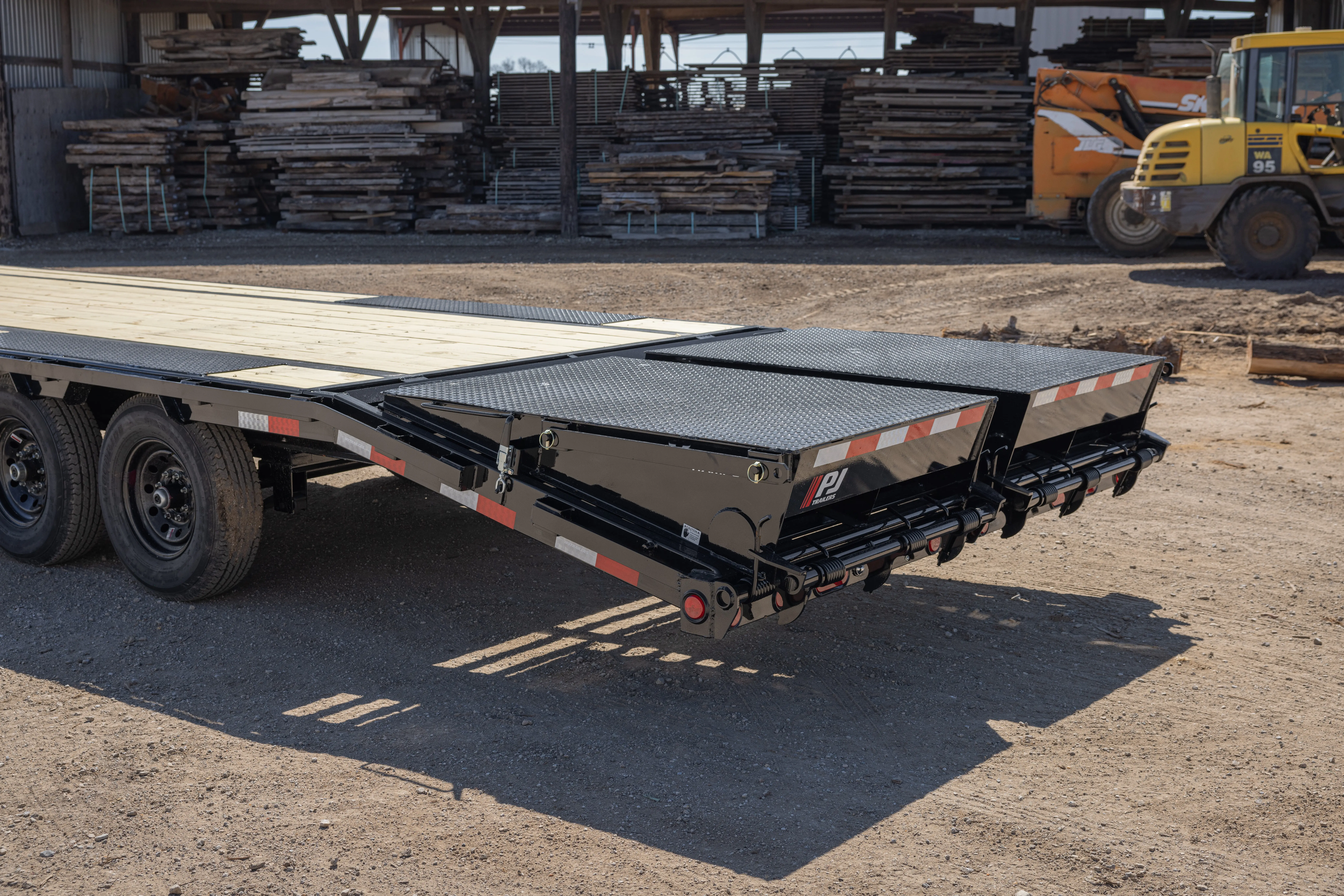

| Ramps | 2 Flip-over Monster Ramps |
| Stake Pockets | 24" Stake Pocket Spacing |
| Wiring | All-Weather Wiring Harness (7-way RV) |
| Tires | ST235/80R16 Radial Tires 10 ply (3,520 lbs.) |
| Paint Color |
[K] Primer + Black Powder Coat
Available Options |

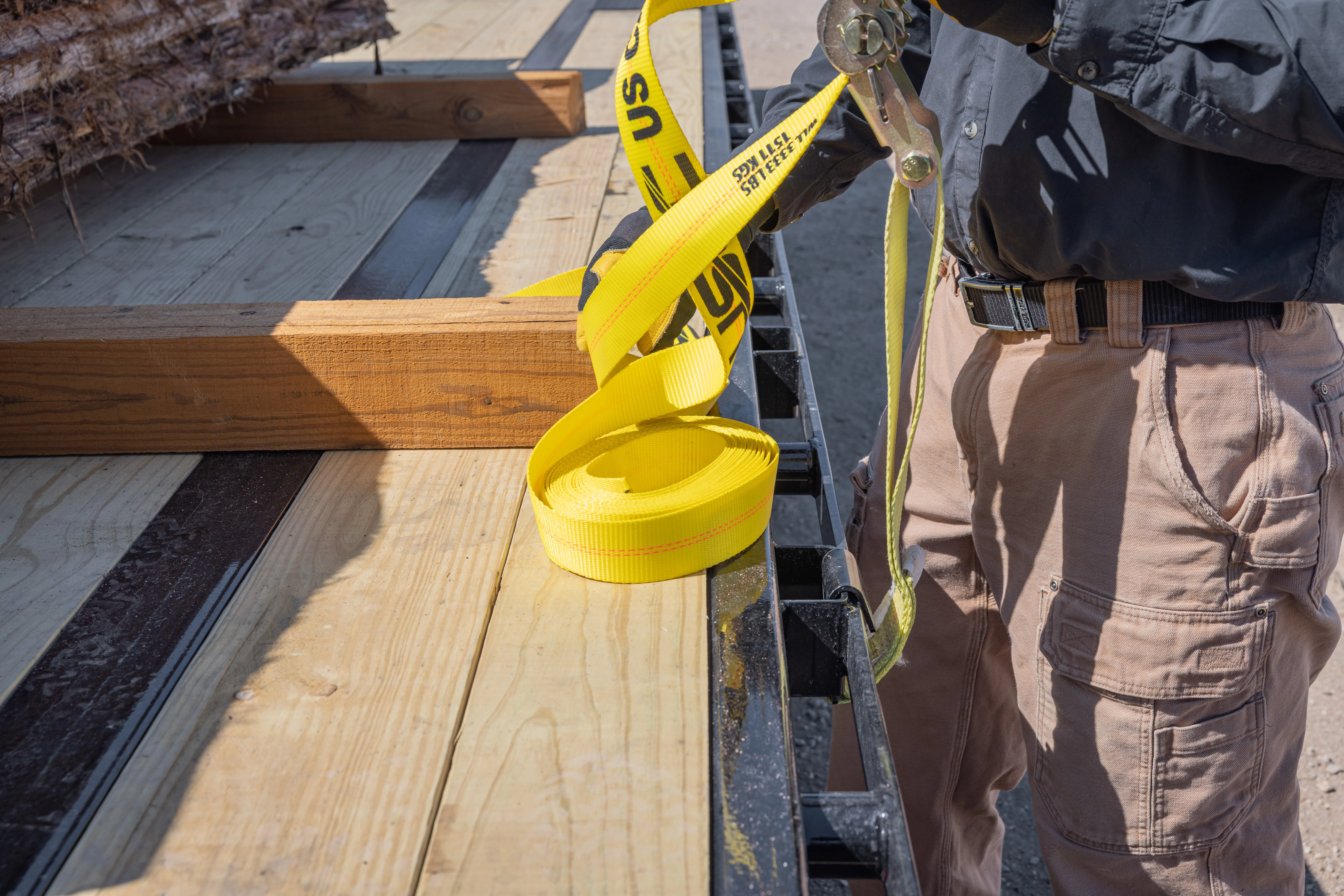

| Rubrail | Rubrail & Stake Pockets |
| Breakaway System | Electric Breakaway Kit w/ Charger |

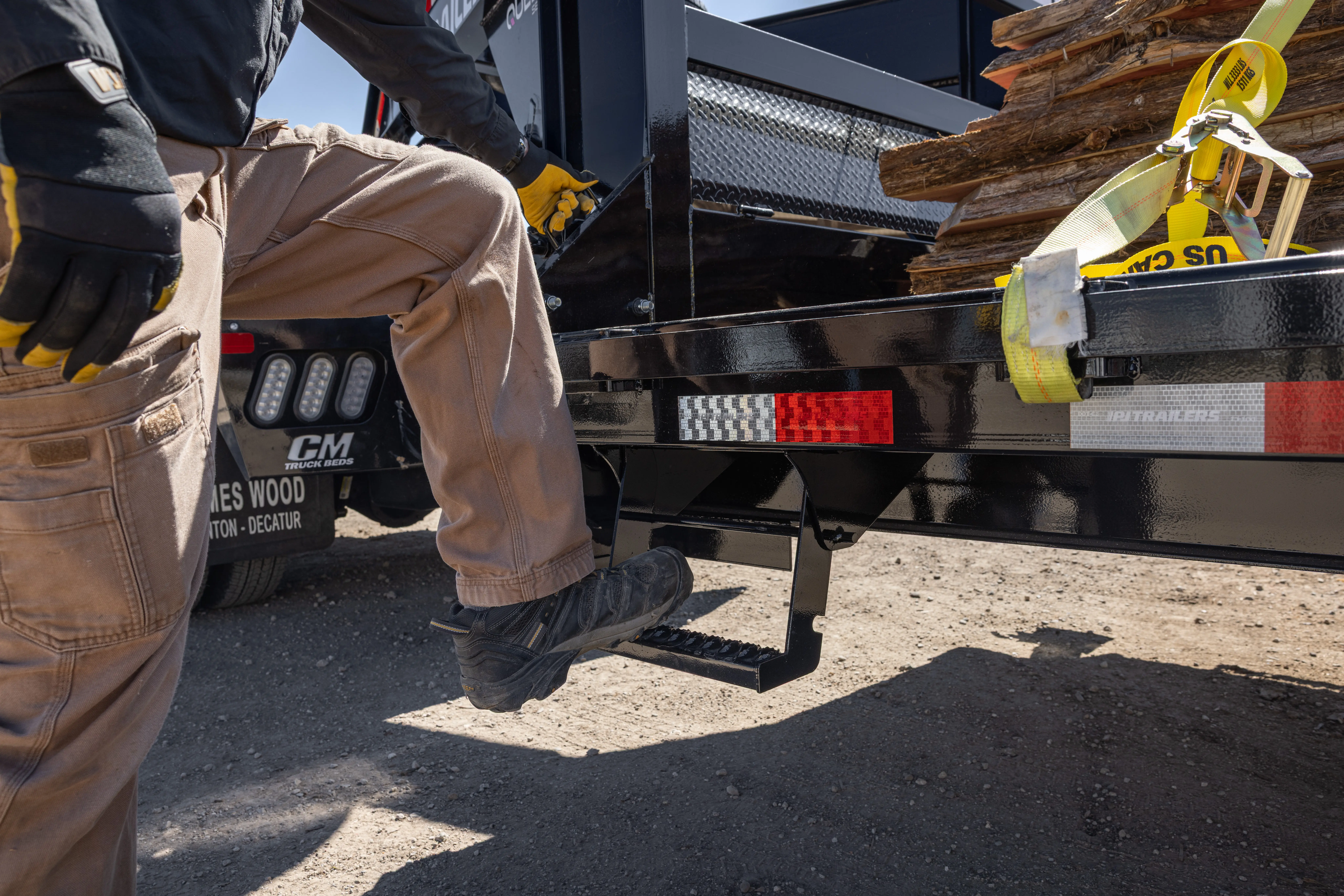

| Steps | Retractable Monster Step on Both Sides |
| Pipe Chain Spools | Pipe Spools |
| Model | Pull Type | GVWR | Empty Weight | Payload Capacity | Deck Length | Deck Width |
|---|---|---|---|---|---|---|
| LQ (25') | Gooseneck | 15900 lbs | 4200 lbs | 11700 lbs | 25 | 102 |
| LQ (30') | Gooseneck | 15900 lbs | 4540 lbs | 11360 lbs | 30 | 102 |
| LQ (32') | Gooseneck | 15900 lbs | 4700 lbs | 11200 lbs | 32 | 102 |
WARNING: This product can expose you to chemicals including Arsenic (inorganic arsenic compounds) which is known to the State of California to cause cancer and Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
