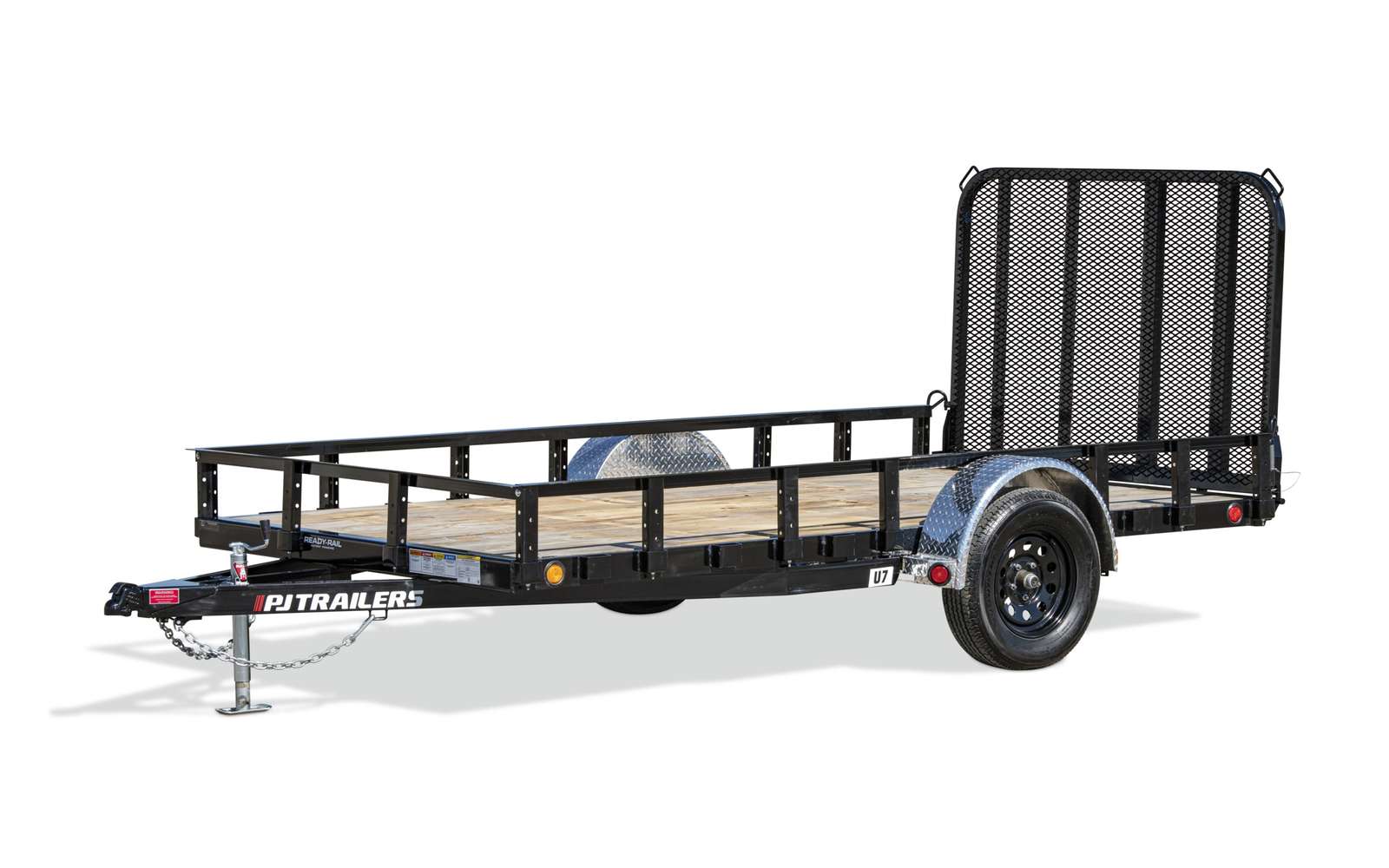

77" Single Axle Channel Utility (U7)


Need a reliable and affordable trailer that’s built for general hauling tasks?

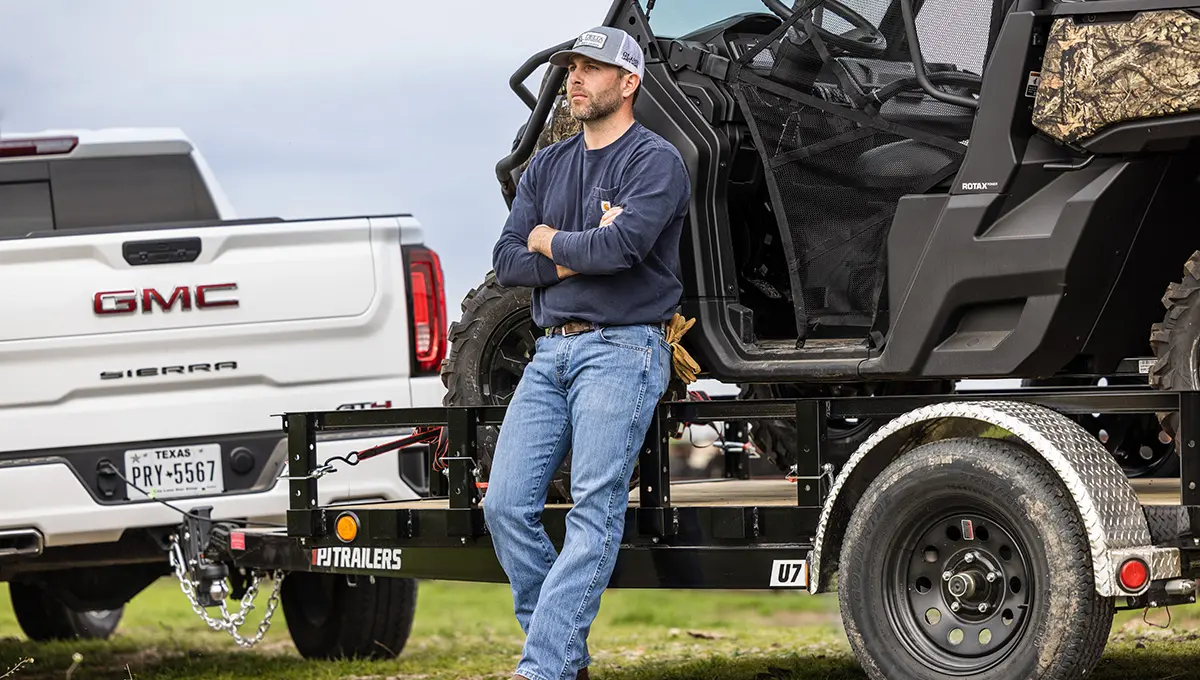

Look no further than the 77" Single Axle Channel Utility Trailer (U7), and get ready to face challenges head-on. With a 77'' wide deck, the U7 features the space you need to haul a wide variety of cargo—from ATVs and UTVs to lawn equipment and other light loads. For those who forge their own path, this trailer is designed for you.

Trailer Specifications

77" Deck Width

10 – 12' Deck Lengths

2,990 lbs GVWR

1,890—3,575 lbs Load Capacity

Model Pull Type GVWR Empty Weight Bed Length Bed Width Tongue Length
U7 (10') Bumperpull 2990 lbs 1100 lbs 10 77" 3' 5" (41")
U7 (14') Bumperpull 2990 lbs 1420 lbs 14 77" 3' 5" (41")
U7 (12') Bumperpull 2990 lbs 1330 lbs 12 77" 3' 5" (41")

Standard Feature Click + for Options
Axles [31DS] 1) 3,500# Idler / Spring

Available Options

[11DS] (1) 3,500# Idler / Spring With Upgrade to 225/75 R15 on 3.5k Axles [11BS] (1) 3,500# Electric / Spring With Upgrade to 225/75 R15 on 3.5k Axles [31DS] (1) 3,500# Idler / Spring [31BS] (1) 3,500# Electric / Spring [51DS] (1) 5,200# Idler / Spring [51BS] (1) 5,200# Electric / Spring

Suspension 4-Leaf Double-Eye Spring Suspension
Tongue 4" Channel Wrapped Tongue
Coupler [2] BP 2" A-Frame

Available Options

[2] BP 2" A-Frame [A] BP 2-5/16" A-Frame

Safety Chains 5/16" Grade 30 Safety Chain w/Clevis hook (2 each)
Jack Pipe Mount Swivel Jack (5,000 lb.)

Available Options

[-JA10] 10k Jack w/ Non-Removable Front Rail [-JA12] Upgrade to 7k Jack [-JA13] Rear Trailer Support Jacks

Frame 4" Channel Frame

Available Options

[-CM12] 12" OC Crossmembers [-CM16] 16" OC Crossmembers

Cross-Members 2-1/2" Angle Crossmembers on 24" Centers
Floor 2" Treated Pine Lumber Deck

Available Options

[-BWOD] Blackwood Pro Outer Deck [-BWFD] Blackwood Pro Full Deck [-FLNF] No Flooring [-SF02] 11ga DP Steel Flr w/ Flushmount D-Rings &16" OC

Fenders 9" x 33" Treadplate Removable Aluminum Fenders

Available Options

[-FE05] Steel Diamond Plate Fenders

Ramps

Available Options

[-ATVR] Side Mount ATV Ramps

Stake Pockets Stake Pockets along both sides (Quantity depends on length)

Available Options

[-2SPF] 2 Stake Pockets In Front of Trailer

Lights

Available Options

[-7WPU] 7 Way Plug Upgrade

Wiring Sealed Wire Harness
Paint Color [K] Black Powder Coat

Available Options

[K] Black Powder Coat [1] Primer + Red Powder Coat (Texas Only) [3] Primer + White Powder Coat (Texas Only) [5] Primer + Tractor Orange Powder Coat (Texas Only) [6] Primer + Grey Powder Coat (Texas Only) [8] Primer + Desert Tan Powder Coat (Texas Only) [P] Primer Only [Z] No Paint No Primer

Tie-Downs

Available Options

[-TD01] 1 Set of Cargo Tie Down (2) Loops [-DR01] 1 Extra Pair D-Rings

Breakaway System Electric Breakaway System w/ Charger
Sides

Available Options

[-SG01] 4ft Side Gate (14ft or longer) [-SR01] 22" Solid Metal Sides w/ 2x2 sq tube [-SR02] 2ft Expanded Metal Sides [-SR03] Regular Sides w/Expanded Metal [-SR04] 4ft Expanded Metal Sides [-SR05] Regular Sides w/Solid Metal

Storage

Available Options

[-TB01] Front Toolbox (Includes 7k jack upgrade) [-TB07] Landscape Toolbox

Top Rail 2" x 2" Top Rail
Cargo Winch

Available Options

[-WN01] Plate for Winch (BP Only)

Uprights 2" x 2" Removable Side Rail equipped with Ready Rail®
Tail [S] Straight Deck

Available Options

[B] Dovetail w/ 4' Fold-up Gate [F] Straight Deck with Fold In Gate [G] Straight Deck w/ 4' Fold-up Gate [K] Straight Deck w/ Bi-Fold Gate [M] Dovetail w/ Bi-Fold Gate [R] Straight Deck w/ 5' Slide-in Ramps

Axle Configuration 31DS

Available Options

31ES 51DS 51ES

Other Options

Available Options

[-GV09] 9,900 G.V.W.R. [-RATL] Ramp Gate Transition Lip [-SAL1] Ship Axles Loose
