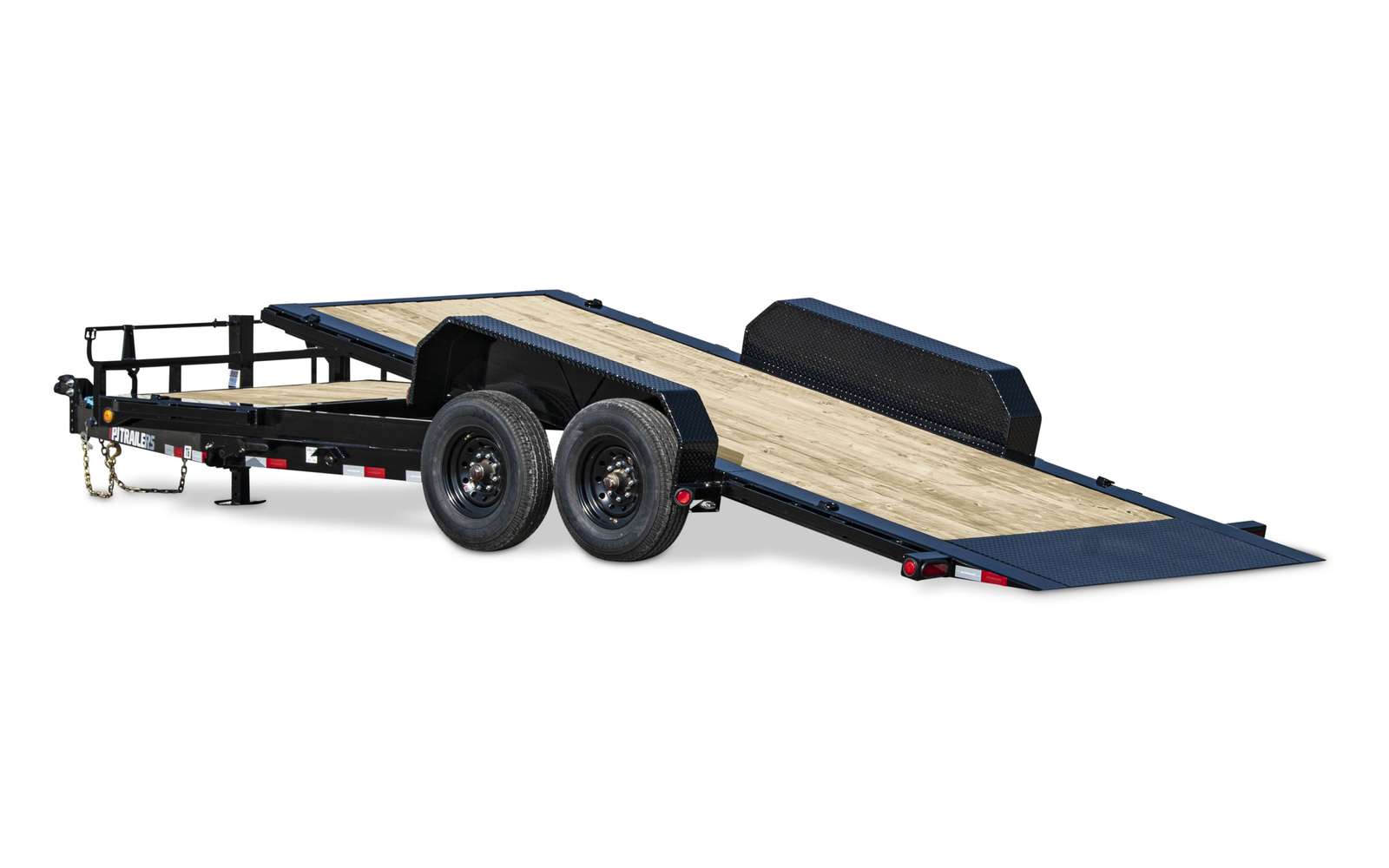

HD Equipment Tilt 6" Channel (TJ)

82"

Deck Width

16 - 24'

Lengths

14,000 - 16,000 lbs.

GVWR

23"
Deck Height

Bumper Pull, Gooseneck & Pintle
Couplers

10,480 - 11,520 lbs.
Load Capacity

(2) 8,000# Oil Bath (Dexter) Electric (Torsion)
Axles

Tilt Angle: 12°

These are the default options that are included in the base model.

Dimensions
Lengths16', 18', 20', 22', 24'
Deck Width82"
Deck Height23"
Weight Ratings
GVWR14,000 lbs.
GAWR8,000 lb. x (2) G.A.W.R.
Finish
TypePowdercoat
PrepAcid Wash, Sandblast
ColorsBlack, Desert Tan, Grey, Red, Tractor Orange, White
Warranty
Axle Warranty10 year Dexter Torflex Axle Warranty
Trailer WarrantyThree (3) Year Frame/One (1) Year Limited Warranty
Coupler
Standard CouplerCoupler-T
Jacks
Front JackSpring Loaded Drop Leg Jack (12,000 lb.)
Front JackGN Option Equipped with (2) Jacks
Front Tray
TrayExpanded Metal Chain Tray
Tounge
Type6" Channel Tongue
Length
(Bumper Pull)
5' .5" (60.5")
Length
(Gooseneck)
7' 2.5" (86.5")
Safety System
Saftey Chains5/16" Grade 70 Safety Chain w/Clevis hook (2 each)
Breakaway SystemDefender 2 Electric Breakaway System w/ Charger
Reflective Tape3M Dot Compliant Reflective Tape
Deck
Flooring2" Treated Pine Lumber Deck
Height23"
Load Angle12°
Deck Width82"
Inside Fender Width82"
Bump RailFront Bump Rail
Side
Side Rail2" Rubrail with Pipe Spools
Stake Pockets3-5/8" x 1-1/2" (ID) Stake Pockets
Fenders10" x 72" Treadplate Removable Steel Fenders
Frame
TypeChannel Frame
Size6"
Crossmembers
Size3"
TypeChannel
Spacing16"
Rear
Tail16' Tilt Deck
Tires
TypeRadial Tires
SizeST235/80R16
Ply14 ply
Rating4,080 lbs.
Rims16" White Spoke Wheels
Bolt Pattern8 on 6.5"
Suspension
Axle TypeTorsion
Axle Count2
Axle Rating8,000# Oil Bath (Dexter)
BrakesElectric
Suspension TypeDexter Torflex® Torsion Suspension
Axle Warranty10 year Dexter Torflex Axle Warranty
Battery & Charging
Wiring HarnessAll-Weather Wiring Harness (7-way RV)
Lighting
Side MarkersDOT Approved Flushmount Lifetime LED Lights
Hydraulics
SystemHydraulic - Cushioned Gravity tilt
Lift Platform
Cylinder3" x 16" Cylinder
Deck
Width82" Wide Tiltable Deck
Length Estimated Base Weight†
16′ 3520 lbs. / kg
18′ 3760 lbs. / kg
20′ 4000 lbs. / kg
22′ 4250 lbs. / kg
24′ 4480 lbs. / kg

† Weights are estimated for base trailer only. We make no guarantee regarding the accuracy of estimated weights.
