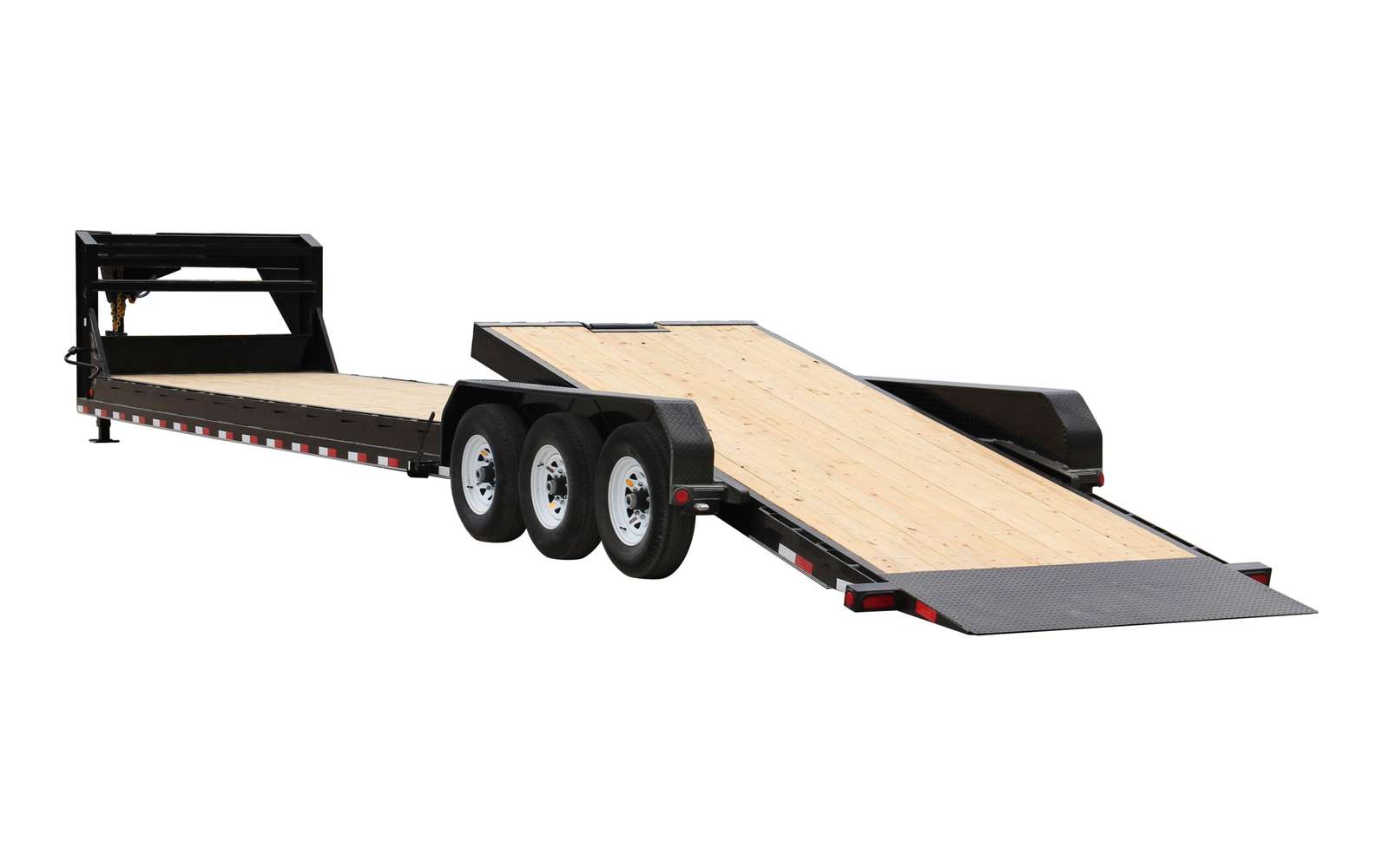

8" Channel Tilt (T7)

Available Options Summary

The following configurations are available on this trailer.

83"

Deck Width

16 - 40'

Lengths

14,000 - 24,000 lbs.

GVWR

24"
Deck Height

Bumper Pull, Gooseneck & Pintle
Couplers

10,590 - 18,190 lbs.
Load Capacity

(2) 7,000# (Dexter) Electric (Torsion)
Axles




13°
Tilt Angle




Standard Configuration Specs

These are the default specs that are included on the base configuration of this model.

Dimensions
Lengths16', 18', 20', 22', 24', 26', 28', 30', 32', 34', 36', 38', 40'
Deck Width83"
Deck Height24"
Weight Ratings
GVWR14,000 lbs.
GAWR7,000 lb. x (2) G.A.W.R.
Finish
TypePowdercoat
PrepAcid Wash, Sandblast
ColorsBlack, Desert Tan, Grey, Red, Tractor Orange, White
Warranty
Axle Warranty10 year Dexter Torflex Axle Warranty
Trailer WarrantyThree (3) Year Frame/One (1) Year Limited Warranty
Coupler
Standard CouplerCoupler-J-14
Jacks
Front JackSpring Loaded Drop Leg Jack (12,000 lb.)
Front JackGN Option Equipped with (2) Jacks
Front Tray
TrayExpanded Metal Chain Tray
Tounge
Type8" Channel Tongue
Length
(Bumper Pull)
5' 2" (62")
Length
(Gooseneck)
8' 7" (103")
Safety System
Saftey Chains5/16" Grade 70 Safety Chain w/Clevis hook (2 each)
Breakaway SystemDefender 2 Electric Breakaway System w/ Charger
Reflective Tape3M Dot Compliant Reflective Tape
Deck
Flooring2" Treated Pine Lumber Deck
Height24"
Load Angle13°
Deck Width83"
Inside Fender Width82"
Side
Side Rail2" Rubrail with Pipe Spools
Stake Pockets3-5/8" x 1-1/2" (ID) Stake Pockets
Fenders9" x 72" Treadplate Removable Steel Fenders
Frame
TypeChannel Frame
Size8"
Crossmembers
Size3"
TypeChannel
Spacing16"
Rear
Tail16' Tilt Deck
Tires
TypeRadial Tires
SizeST235/80R16
Ply10 ply
Rating3,520 lbs.
Rims16" White Spoke Wheels
Bolt Pattern8 on 6.5"
Suspension
Axle TypeTorsion
Axle Count2
Axle Rating7,000# (Dexter)
BrakesElectric
Suspension TypeDexter Torflex® Torsion Suspension
Axle Warranty10 year Dexter Torflex Axle Warranty
Battery & Charging
Wiring HarnessAll-Weather Wiring Harness (7-way RV)
Lighting
Side MarkersDOT Approved Flushmount Lifetime LED Lights
Hydraulics
SystemHydraulic - Cushioned Gravity tilt
Lift Platform
Cylinder3" x 16" Cylinder
Deck
Width74" Wide Tiltable Deck
Length Estimated Base Weight†
16′ 3410 lbs. / kg
18′ 3610 lbs. / kg
20′ 3810 lbs. / kg
22′ 4010 lbs. / kg
24′ 4210 lbs. / kg
26′ 4410 lbs. / kg
28′ 4610 lbs. / kg
30′ 4810 lbs. / kg
32′ 5010 lbs. / kg
34′ 5210 lbs. / kg
36′ 5410 lbs. / kg
38′ 5610 lbs. / kg
40′ 5810 lbs. / kg

† Weights are estimated for base trailer only. We make no guarantee regarding the accuracy of estimated weights.
