Voyager Hydraulic Dovetail Gooseneck (LY)
Ready to tackle your next big project? The all-new, industry-leading LY Voyager Hydraulic Dovetail Gooseneck is built to deliver.
This all-new gooseneck trailer is engineered for the toughest jobs. Featuring a 12' hydraulic dovetail with a 12,000 lb. loading capacity and a 12-degree ramp angle, it makes loading heavy equipment fast and easy. The Demco EZ Latch Gooseneck Coupler ensures secure, hassle-free hitching, while the Formed ProBeam™ Gooseneck delivers unmatched strength and durability—mile after mile.
What Drives You, Drives Us™
Trailer Specifications
102" Deck Width
32' – 40' Deck Lengths
25,000 lbs GVWR
14,007—21,460 lbs Load Capacity
| Standard Feature | Click + for Options |
|---|---|
| Axles |
[A2BS] (2) 10,000# Axles Electric / Spring
Available Options |
| Suspension | 5-Leaf Slipper Spring Suspension |
| Tongue | 14" x 22 lb. I-beam Tongue |
| Coupler | [Q] GN 2-5/16" Square Demco EZ Latch (30,000 lb.) w/ Toolbox |
| Safety Chains | 3/8" Grade 70 Safety Chain w/Clevis hook (2 each) |
| Jack |
Spring Loaded Drop Leg Jack (12,000 lb.)
Available Options |
| Frame | 14" x 22 lb. I-Beam Main Frame |
| Cross-Members |
3” Channel Crossmembers 16” oc
Available Options |
| Floor |
2" Treated Pine Lumber Deck
Available Options |
| Stake Pockets | 24" Stake Pocket Spacing |
| Lights |
Available Options |
| Wiring | All-Weather Wiring Harness (7-way RV) |
| Tires | ST235/80R16 Radial Tires 10 ply (3,080 lbs.) |

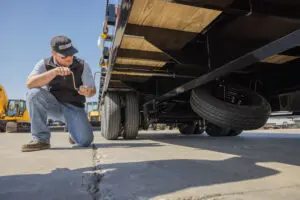

| Spare Mount | Under-Deck Mounted Spare |
| Spare Tire | ST235/80 R-16 Load Range E (Included)` |
| Paint Color |
[K] Primer + Black Powder Coat
Available Options |
| Rubrail | Rubrail & Stake Pockets |
| Tie-Downs |
Available Options |
| Breakaway System | Electric Breakaway System w/ Charger |
| Battery |
12V Deep Cycle Battery
Available Options |
| Charging System | 110V Integrated Trickle Charger |
| Hydraulics | 12' Hydraulic Tail - Power Up / Down |
| Steps | Monster Steps (Both Sides) |
| Storage |
Available Options |
| Cargo Winch |
Available Options |
| Pipe Chain Spools | Pipe Spools |
| Tail | [S] 12' Hydraulic Dovetail w/ 12k Lift and 12° Ramp Angle |
| Lift Cylinder | Dual 3.5" x 16" Hyd. Cylinders |
| Other Options |
Available Options |
| Model | Pull Type | GVWR | Empty Weight | Payload Capacity | Deck Length | Deck Width |
|---|---|---|---|---|---|---|
| LY (32') | Gooseneck | 25000 lbs | 8540 lbs | 16,460 lbs | 32 | 102" |
| LY (34') | Gooseneck | 25000 lbs | 9153 lbs | 15,847 lbs | 34 | 102" |
| LY (36') | Gooseneck | 25000 lbs | 9766 lbs | 15,234 lbs | 36 | 102" |
| LY (38') | Gooseneck | 25000 lbs | 10379 lbs | 14,621 lbs | 38 | 102" |
| LY (40') | Gooseneck | 25000 lbs | 10993 lbs | 14,007 lbs | 40 | 102" |
