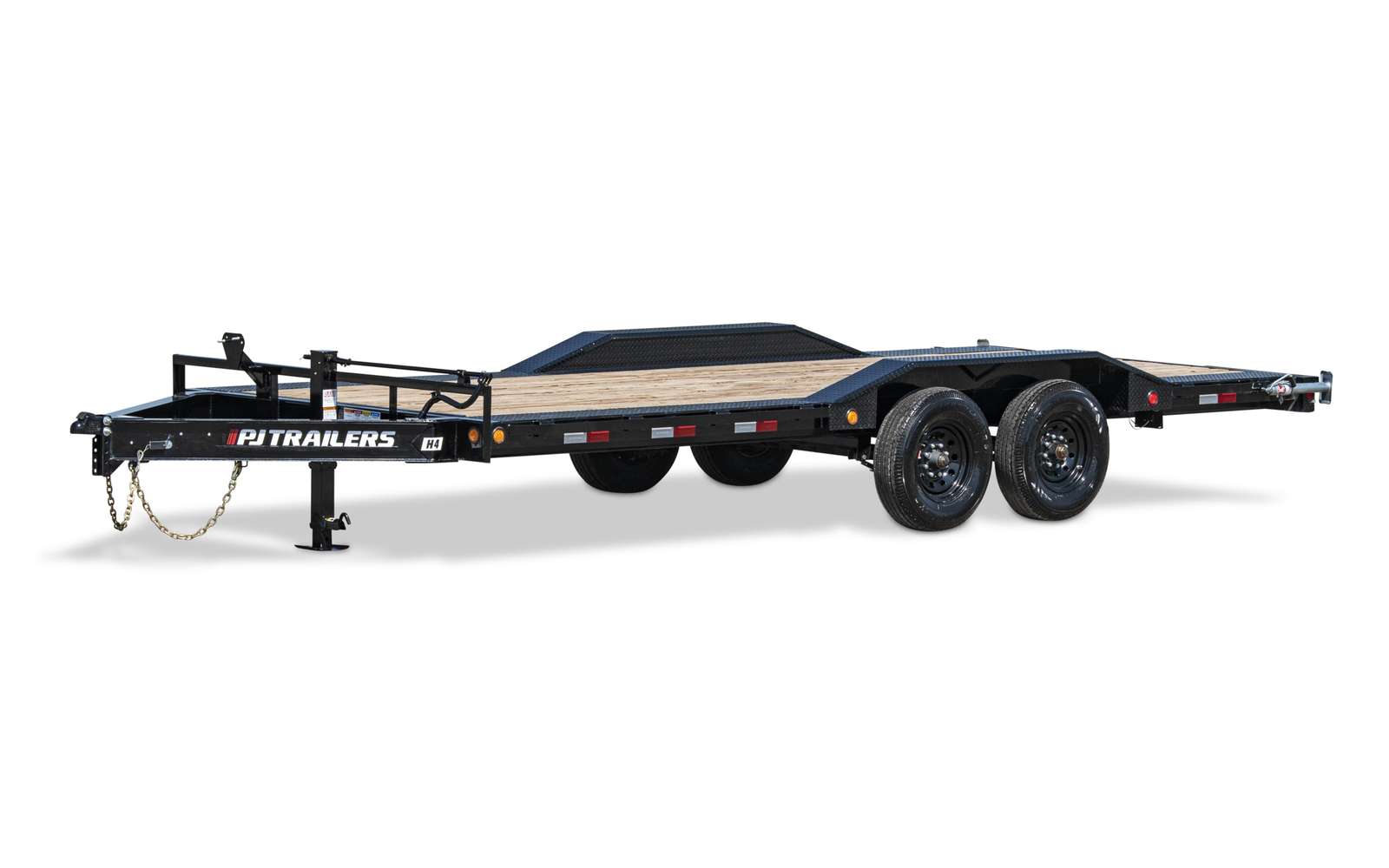

8" Pro-Beam™ Super-Wide Equipment (H6)

102"

Deck Width

20 - 30'

Lengths

16,000 - 18,500 lbs.

GVWR

28"
Deck Height

Bumper Pull, Gooseneck & Pintle
Couplers

11,940 - 13,640 lbs.
Load Capacity

(2) 8,000# Oil Bath (Dexter) Electric (Spring)
Axles

  • 16,000 - 18,500 lbs. GVWR
  • 8,000 lb. x (2) G.A.W.R.
  • 3/8" Grade 70 Safety Chain w/Clevis hook (2 each)
  • Spring Loaded Drop Leg Jack (10,000 lb.)
  • 2 - 8,000# Oil Bath (Dexter) Electric Axle
  • 6-Leaf Slipper Spring Suspension
  • 16" White Spoke Wheels
  • ST235/80R16 Radial Tires (4,080 lbs.)
  • 3-5/8" x 1-1/2" (ID) Stake Pockets
  • HD Drive Over 1/4" Diamond Plate Fenders
  • 8" x 10 lb. I-beam Tongue
  • 3" Channel Crossmembers on 16" Centers
  • 2" Treated Pine Lumber Deck
  • 102" Wide Deck
  • All-Weather Wiring Harness (7-way RV)
  • Powdercoat
  • 5 year Dexter Axle Warranty
LengthEstimated Base Weight†
20′4060 lbs. / kg
22′4210 lbs. / kg
24′4380 lbs. / kg
26′4540 lbs. / kg
28′4700 lbs. / kg
30′4860 lbs. / kg

† Weights are estimated for base trailer only. We make no guarantee regarding the accuracy of estimated weights.
