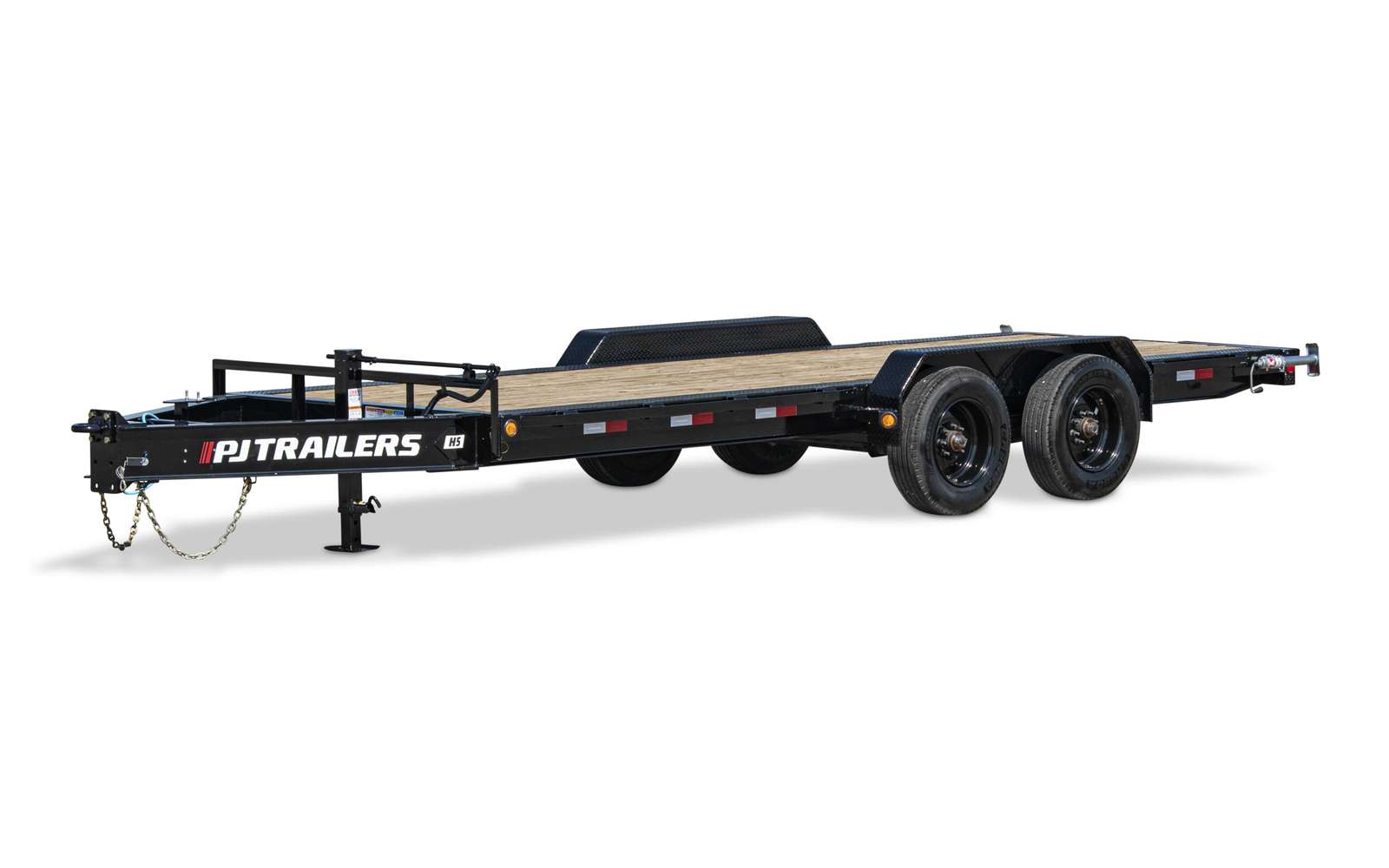

10" Pro-Beam™ Equipment (H5)

Available Options Summary

The following configurations are available on this trailer.

82"

Deck Width

20 - 32'

Lengths

20,000 - 23,000 lbs.

GVWR

28"
Deck Height

Bumper Pull, Gooseneck & Pintle
Couplers

12,400 - 16,382 lbs.
Load Capacity

(2) 10,000# (Dexter) Electric (Spring)
Axles




Straight Deck & Dovetail
Tails Available




Standard Configuration Specs

These are the default specs that are included on the base configuration of this model.

Dimensions
Lengths20', 22', 24', 26', 28', 30', 32'
Deck Width82"
Deck Height28"
Weight Ratings
GVWR20,000 lbs.
GAWR10,000 lb. x (2) G.A.W.R
Finish
TypePowdercoat
PrepAcid Wash, Sandblast
ColorsBlack, Desert Tan, Grey, Red, Tractor Orange, White
Warranty
Axle Warranty10 year Dexter Torflex Axle Warranty
Trailer WarrantyThree (3) Year Frame/One (1) Year Limited Warranty
Coupler
Standard CouplerCoupler-P-F36
Jacks
Front JackSpring Loaded Drop Leg Jack (12,000 lb.)
Front JackGN Option Equipped with (2) Jacks
Front Tray
TrayExpanded Metal Chain Tray
Tounge
Type10" I-beam Tongue
Safety System
Saftey Chains3/8" Grade 70 Safety Chain w/Clevis hook (2 each)
Breakaway SystemDefender 2 Electric Breakaway System w/ Charger
Reflective Tape3M Dot Compliant Reflective Tape
Deck
Flooring2" Treated Pine Lumber Deck
Height28"
Deck Width82"
Inside Fender Width82"
Side
Side Rail2" Rubrail with Pipe Spools
Stake Pockets3-5/8" x 1-1/2" (ID) Stake Pockets
Fenders9" x 81" Treadplate Removable Steel Fenders
Frame
TypeI-Beam Main Frame
Size10" x 19 lb.
Crossmembers
Size3"
TypeChannel
Spacing16"
Rear
TailStraight Deck
Ramps5' Slide-In Channel Ramps
Tires
TypeRadial Tires
SizeST235/75/R17.5
Ply18 ply
Rating6,005 lbs.
Rims17.5" Grey Wheels
Bolt Pattern8 on 6.5"
Suspension
Axle TypeSpring
Axle Count2
Axle Rating10,000# (Dexter)
BrakesElectric
Suspension TypeDexter Torflex® Torsion Suspension
Axle Warranty10 year Dexter Torflex Axle Warranty
Battery & Charging
Wiring HarnessAll-Weather Wiring Harness (7-way RV)
Lighting
Side MarkersDOT Approved Flushmount Lifetime LED Lights
Length Estimated Base Weight†
20′ 5580 lbs. / kg
22′ 5730 lbs. / kg
24′ 5910 lbs. / kg
26′ 6097 lbs. / kg
28′ 6262 lbs. / kg
30′ 6447 lbs. / kg
32′ 6618 lbs. / kg

† Weights are estimated for base trailer only. We make no guarantee regarding the accuracy of estimated weights.
