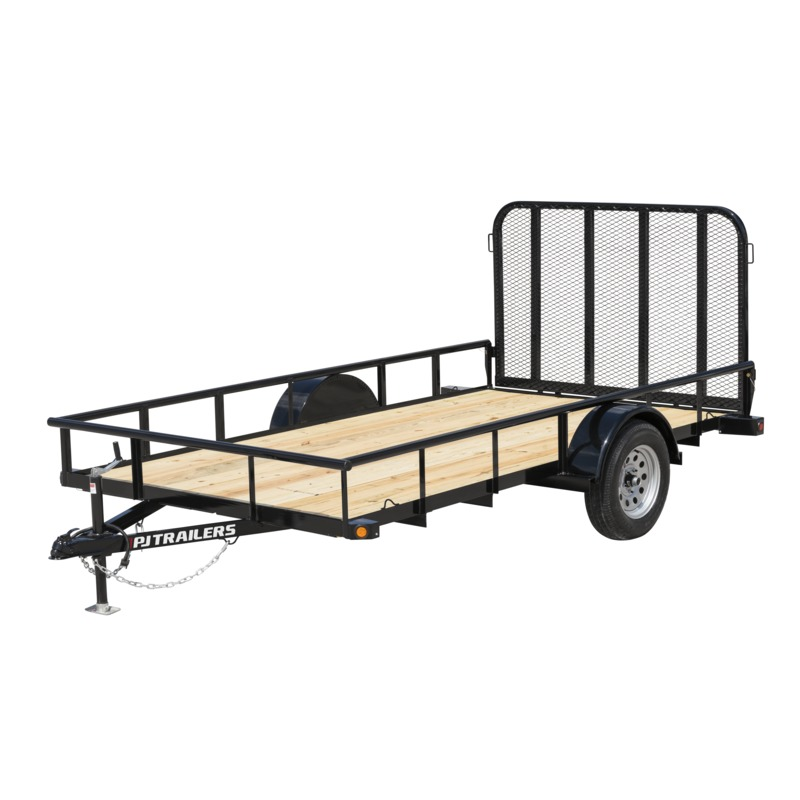

77" Angle Utility (E7)

Available Options Summary

The following configurations are available on this trailer.

77"

Deck Width

12' - 14'

Lengths

2,995 lbs.

GVWR

20"
Deck Height

Bumper Pull
Couplers

2,272 - 2,332 lbs.
Load Capacity

(1) 3,500# (Dexter) w/ Brake Flanges (Spring)
Axles




Straight Deck
Tails Available




Standard Configuration Specs

These are the default specs that are included on the base configuration of this model.

Dimensions
Lengths12', 14'
Deck Width77"
Deck Height20"
Weight Ratings
GVWR2,995 lbs.
GAWR2,995 lbs. x (1) G.A.W.R.
Finish
TypeValspar Paint Finish
PrepAcid Wash
ColorsBlack
Warranty
Axle Warranty5 year Dexter Axle Warranty
Trailer WarrantyThree (3) Year Frame/One (1) Year Limited Warranty
Coupler
Standard CouplerCoupler-2
Jacks
Front JackTop Wind Jack (2,000 lb.)
Tounge
Type3" Channel Tongue
Length
(Bumper Pull)
3'1" (37 5/8")
Safety System
Saftey Chains1/4" Grade 30 Safety Chain w/Clevis Hook (2 each)
Deck
Flooring2" Treated Pine Deck
Height20"
Deck Width77"
Inside Fender Width77"
D-rings(4) Tie-Down Loops
Side
Top Rail2" Pipe
Uprights1-1/2" x 1-1/2" Angle
Fenders9” x 32” Smooth Steel Fenders
Frame
TypeAngle Frame
Size3"
Crossmembers
Size3" x 2" x 3/16"
TypeAngle
Spacing24"
Rear
TailStraight Deck
Tires
TypeBiased Ply
SizeST205/75D-15
Ply6 ply
Rating1,820 lbs.
Rims15" Silver Mod Wheels
Bolt Pattern5 on 5"
Spare TireN/A
Suspension
Axle TypeSpring
Axle Count1
Axle Rating3,500# (Dexter)
Brakesw/ Brake Flanges
Suspension Type4-Leaf Double-eye Spring Suspension
Axle Warranty5 year Dexter Axle Warranty
Battery & Charging
Wiring Harness4-Way Flat w/ Loom
Lighting
Side MarkersDOT Approved Flushmount Lifetime LED Lights
Rear LightsFlushmount 6" Oval Lifetime LED Tail Lights
Length Estimated Base Weight†
12′ 983 lbs. / kg
14′ 1073 lbs. / kg

† Weights are estimated for base trailer only. We make no guarantee regarding the accuracy of estimated weights.
