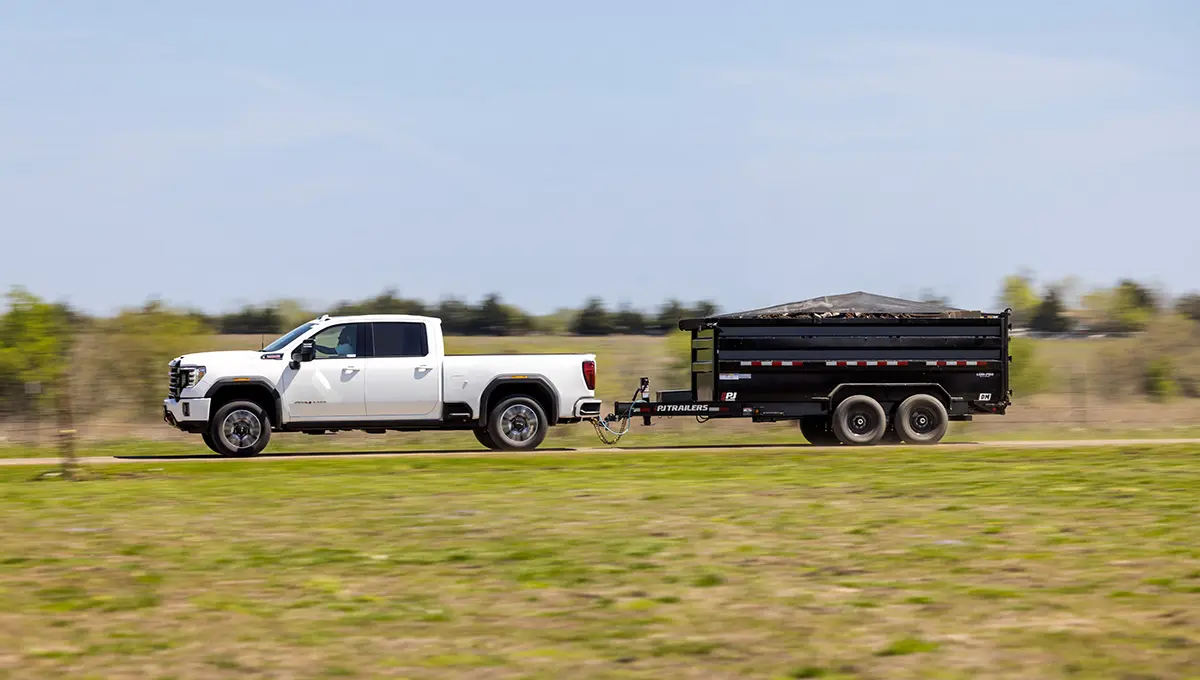

83" Low-Pro High Side Dump (DM)

Available Options Summary

The following configurations are available on this trailer.

83"

Deck Width

12 - 16'

Lengths

14,000 - 21,000 lbs.

GVWR

24 - 28"
Deck Height

Bumper Pull, Gooseneck & Pintle
Couplers

9,130 - 10,360 lbs.
Load Capacity

(2) 7,000# (Dexter) Electric (Spring)
Axles

9.22 - 16.40 yd3

Dump Bed Cargo Capacity

36 & 48"

Dump Sides Height(s) Available

40°

Dump Angle

Standard Configuration Specs

These are the default specs that are included on the base configuration of this model.

Dimensions
Lengths12', 14', 16'
Bed Width83"
Bed Height24"
Weight Ratings
GVWR14,000 lbs.
GAWR7,000 lb. x (2) G.A.W.R.
Finish
TypePowdercoat
PrepAcid Wash, Sandblast
ColorsBlack, Desert Tan, Grey, Red, Tractor Orange, White
Warranty
Axle Warranty5 year Dexter Axle Warranty
Trailer WarrantyThree (3) Year Frame/One (1) Year Limited Warranty
Coupler
Standard CouplerCoupler-A-2516-14
Jacks
Front JackTop Wind Drop Leg Jack (8,000 lb.)
Front JackGN Option Equipped with (2) Jacks
Toolbox
ToolboxLockable Toolbox (Houses Battery and Pump)
Toolbox GooseneckGN Option Equipped w/Lockable Front Toolbox
Tounge
Type8" x 10 lb. I-beam Tongue
Length
(Bumper Pull)
4' 10" (60")
Length
(Gooseneck)
9' 2" (110")
Safety System
Saftey Chains5/16" Grade 70 Safety Chain w/Clevis hook (2 each)
Breakaway SystemDefender 2 Electric Breakaway System w/ Charger
Reflective Tape3M Dot Compliant Reflective Tape
Deck
Flooring10ga. Steel Bed
D-rings(4) D-Rings (Welded inside the Box)
Side
StepMonster Steps on Both Sides
Stake Pockets3-5/8" x 1-1/2" (ID) Stake Pockets
Fenders1/8" Treadplate Steel Fenders
Frame
TypeI-Beam Main Frame
Size8" x 10 lb.
Crossmembers
Size3"
TypeChannel
Spacing16"
Rear
TailSplit / Spreader Gate
Ramps6' 6" Slide-In Channel Ramps
Tires
TypeRadial Tires
SizeST235/80R16
Ply10 ply
Rating3,520 lbs.
Rims16" White Spoke Wheels
Bolt Pattern6 on 6.5"
Suspension
Axle TypeSpring
Axle Count2
Axle Rating7,000# (Dexter)
BrakesElectric
Suspension Type6-Leaf Slipper Spring Suspension
Axle Warranty5 year Dexter Axle Warranty
Battery & Charging
BatteryInterstate (TM) Deep Cycle Battery
Charging System110V Integrated Trickle Charger
Wiring HarnessAll-Weather Wiring Harness (7-way RV)
Frame WiringDouble Insulated Wiring Harness
Lighting
Side MarkersDOT Approved Flushmount Lifetime LED Lights
Hydraulics
SystemHydraulic - Power Up / Down
Pump12V Hydraulic Pump
Controller12' Control Cable
Lift Platform
Cylinder5" x 17" Cylinder w/Scissor & 5" x 21" on 16'
TypeScissor Lift
Bed
Inside Width83"
Height24"
Thickness10ga.
Angle40°
Cargo Capacity9.22 - 16.40 yd3
Rear
Gate2-Way Gate (Barn Doors & Spreader Gate)
Sides
Height48"
Thickness10ga.
TypeSteel Sides
SupportsSide Reinforcement Supports
Saftey
TarpRoll-up Tarp Kit (Pull Bar) 7' x 20'
Length Estimated Base Weight†
12′ 4870 lbs. / kg
14′ 5180 lbs. / kg
16′ 5640 lbs. / kg

† Weights are estimated for base trailer only. We make no guarantee regarding the accuracy of estimated weights.
