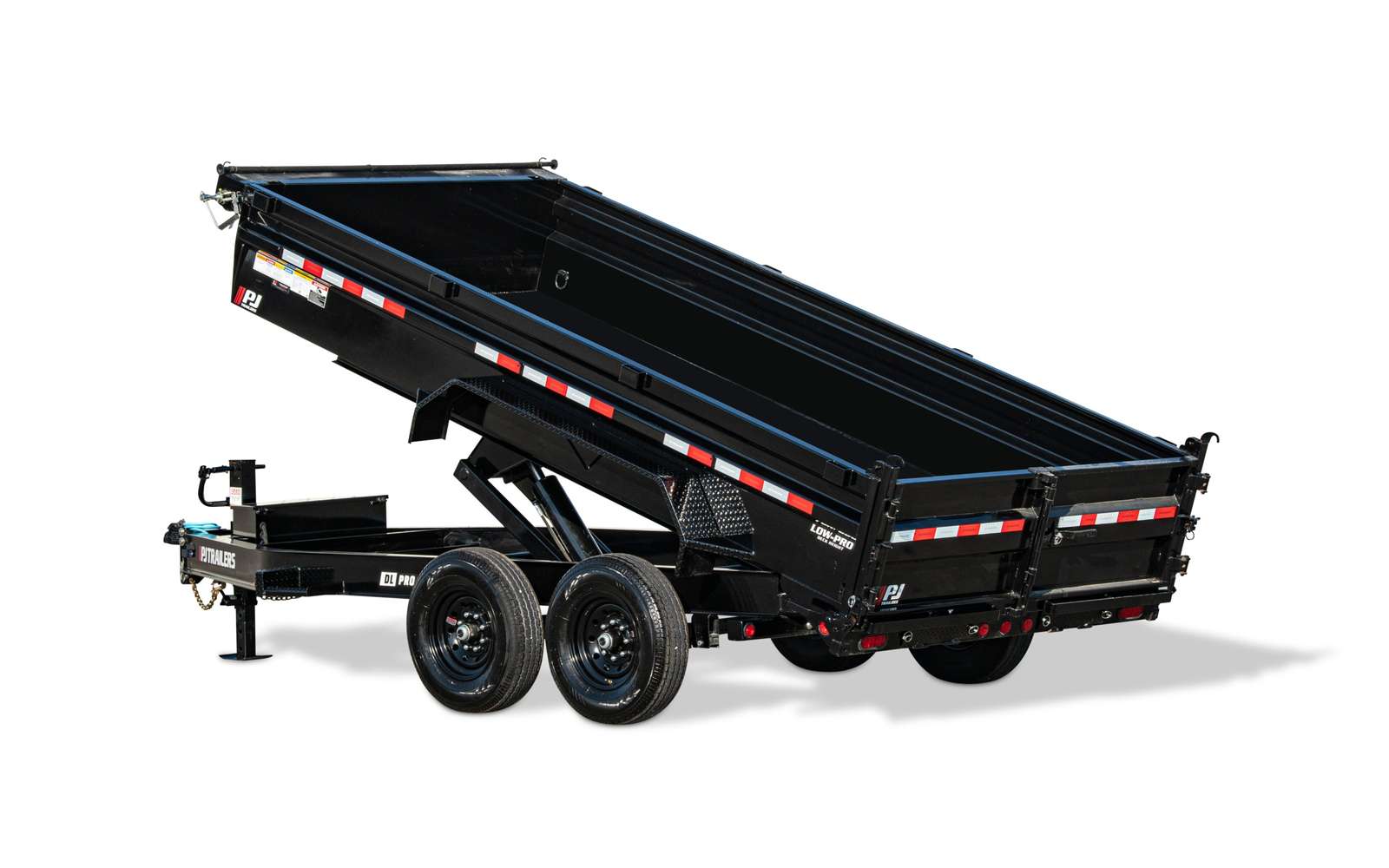

14K Low-Profile Dump PRO (DL)

Available Options Summary

The following configurations are available on this trailer.

83"

Deck Width

12 - 16'

Lengths

14,000 - 21,000 lbs.

GVWR

24 - 28"
Deck Height

Bumper Pull, Gooseneck & Pintle
Couplers

10,400 - 16,750 lbs.
Load Capacity

(2) 7,000# (Dexter) Electric (Spring)
Axles

6.15 - 16.4 yd3

Dump Bed Cargo Capacity

24"

Dump Sides Height(s) Available

40°

Dump Angle

Configuration Notes

  • Triple Axle Options Only on 16' Length
  • 6" x 21" Cylinder Included on Triple Axle Options
  • Gooseneck coupler option includes Spare Tire & Mount

Standard Configuration Specs

These are the default specs that are included on the base configuration of this model.

Dimensions
Lengths12', 14', 16'
Bed Width83"
Bed Height28"
Weight Ratings
GVWR14,000 lbs.
GAWR7,000 lb. x (2) G.A.W.R.
Finish
TypePowdercoat
PrepAcid Wash, Sandblast
ColorsBlack, Desert Tan, Grey, Red, Tractor Orange, White
Warranty
Axle Warranty5 year Dexter Axle Warranty
Trailer WarrantyThree (3) Year Frame/One (1) Year Limited Warranty
Coupler
Standard CouplerCoupler-A-2516-14
Jacks
Front JackDrop Leg Jack (12,000 lb.)
Front JackGN Option Equipped with (2) Jacks
Toolbox
ToolboxLockable Toolbox (Houses Battery and Pump)
Toolbox GooseneckGN Option Equipped w/Lockable Front Toolbox
Tounge
Type8" x 10 lb. Formed I-beam Tongue
Length
(Bumper Pull)
4' 10" (58")
Length
(Gooseneck)
9' 2" (110")
Safety System
Breakaway SystemDefender 2 Electric Breakaway System w/ Charger
Reflective Tape3M Dot Compliant Reflective Tape
Deck
Flooring10ga. Steel Bed
D-rings(4) D-Rings (Welded inside the Box)
Side
StepUltra-Wide Monster Step
Stake Pockets(10) 3-5/8" x 1-1/2" (ID) Stake Pockets
Fenders1/8" Treadplate Steel Fenders
Frame
TypeFormed I-Beam Main Frame
Size8" x 10 lb.
Crossmembers
Size3"
TypeChannel
Spacing16"
Rear
Ramps6' 6" Slide-In Channel Ramps
Tires
TypeRadial Tires
SizeST235/80R16
Ply10 ply
Rating3,520 lbs.
Rims16" Black Mod Wheels
Bolt Pattern8 on 6.5"
Spare TireSpare Tire Mount
Suspension
Axle TypeSpring
Axle Count2
Axle Rating7,000# (Dexter)
BrakesElectric
Suspension Type6-Leaf Slipper Spring Suspension
Axle Warranty5 year Dexter Axle Warranty
Battery & Charging
BatteryInterstate (TM) Deep Cycle Battery
Charging System110V Integrated Trickle Charger
Wiring HarnessAll-Weather Wiring Harness (7-way RV)
Frame WiringDouble Insulated Wiring Harness
Lighting
Side MarkersSealed Lightbox with DOT Approved Flushmount Lifetime LED Lights
Rear LightsDOT Approved Flushmount Lifetime LED Lights
Hydraulics
SystemHydraulic - Power Up / Down
Pump12V Hydraulic Pump
Controller12' Control Cable
Lift Platform
Cylinder5" x 17" Cylinder w/Scissor & 5" x 21" on 16'
TypeScissor Lift
Bed
Inside Width83"
Height28"
Thickness10ga.
Angle40°
Cargo Capacity6.15 - 16.4 yd3
Rear
Gate2-Way Gate (Barn Doors & Spreader Gate)
Sides
Height24"
Thickness10ga.
TypeSteel Sides
SupportsUniwall Construction (Top Rail, Side, and Bed as one-piece)
Saftey
TarpRoll-up Tarp Kit (Pull Bar) 7' x 20'
Length Estimated Base Weight†
12′ 3600 lbs. / kg
14′ 3970 lbs. / kg
16′ 4250 lbs. / kg

† Weights are estimated for base trailer only. We make no guarantee regarding the accuracy of estimated weights.
