6" Channel Equipment (CD)
Proven PJ Quality. Exceptional Value.
The 6" Channel Equipment Trailer (CD) combines enhanced functionality with uncompromised durability. Built with a sturdy 6-inch channel frame and tongue, it offers superior strength and longevity. Reliable cargo securement is assured with six standard stake pockets, while the adjustable coupler ensures a perfect match between your truck hitch. Fast and efficient loading is achieved with a 32" wood-filled dovetail and 5' fold-up ramps, and the removable fenders provide extra width clearance for wider equipment.
What Drives You, Drives Us
Trailer Specifications
83" Deck Width
18' – 22' Deck Lengths
14,000 lbs GVWR
10,980—11,380 lbs Load Capacity
| Standard Feature | Click + for Options |
|---|---|
| Axles |
[72BS] (2) 7,000# Electric / Spring
Available Options |
| Suspension | 6-Leaf Slipper Spring Suspension |
| Tongue | 6" Channel Tongue |
| Coupler |

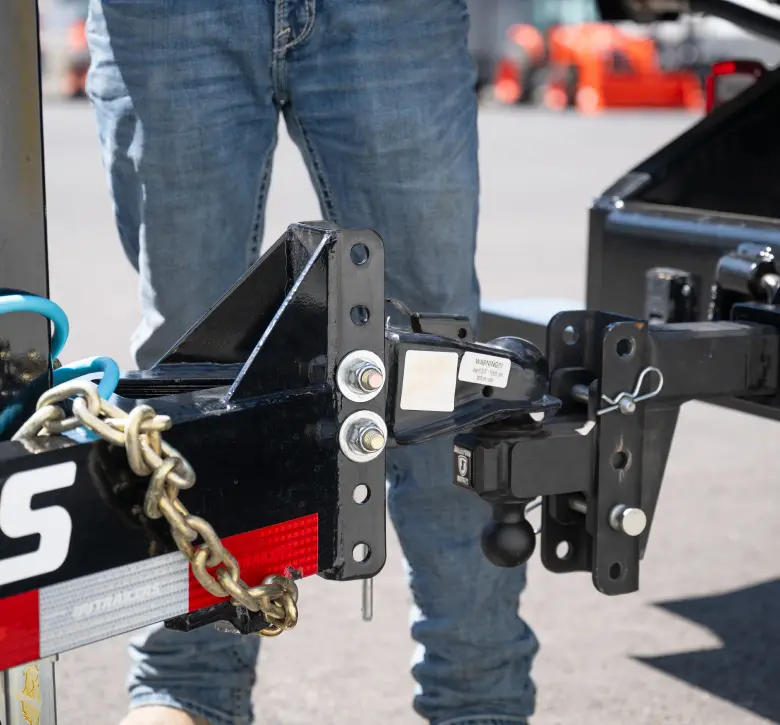

[C] BP 2-5/16" Adjustable
Available Options |
| Safety Chains | 5/16" Grade 70 Safety Chain w/Clevis hook (2 each) |
| Jack | 7,000# Top Wind Drop Leg Jack |
| Frame | 6" Channel Frame |
| Cross-Members | 3" Channel Crossmembers on 16" Centers |
| Floor | 2" Treated Pine Lumber Deck |
| Fenders | 9" x 72" Treadplate Removable Steel Fenders |
| Dovetail | 32" Dovetail with Fold-Up Ramps |
| Stake Pockets | Stake Pockets along both sides (Quantity depends on length) |
| Wiring | All-Weather Wiring Harness (7-way RV) |
| Tires | ST235/80R16 Radial Tires 10 ply (3,520 lbs.) |
| Spare Tire |
Available Options |
| Paint Color |
[K] Black Powder Coat
Available Options |
| Breakaway System | Electric Breakaway System w/ Charger |
| Other Options |
Available Options |
| Model | Pull Type | GVWR | Empty Weight | Payload Capacity | Deck Length | Deck Width | Tongue Length |
|---|---|---|---|---|---|---|---|
| CD (18') | Bumperpull | 14000 lbs | 2620 lbs | 11380 lbs | 18 | 83" | 4' 7" (55") |
| CD (20') | Bumperpull | 14000 lbs | 2820 lbs | 11180 lbs | 20 | 83" | 4' 7" (55") |
| CD (22') | Bumperpull | 14000 lbs | 3020 lbs | 10980 lbs | 22 | 83" | 4' 7" (55") |
WARNING: This product can expose you to chemicals including Arsenic (inorganic arsenic compounds) which is known to the State of California to cause cancer and Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
