83" Telescopic Dump (DT1)
The future is here with the all-new DT, a revolutionary dump trailer that redefines industry standards.

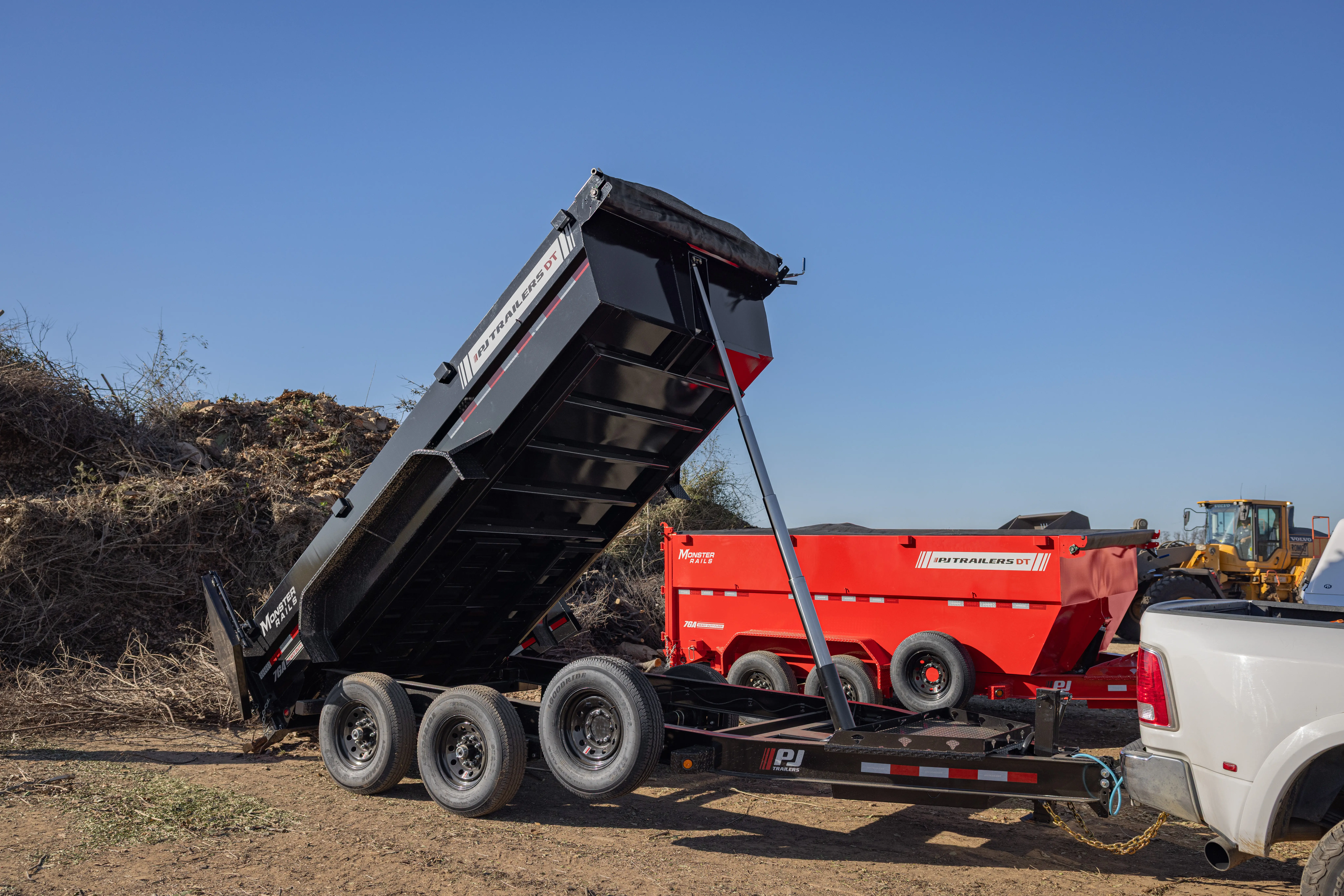

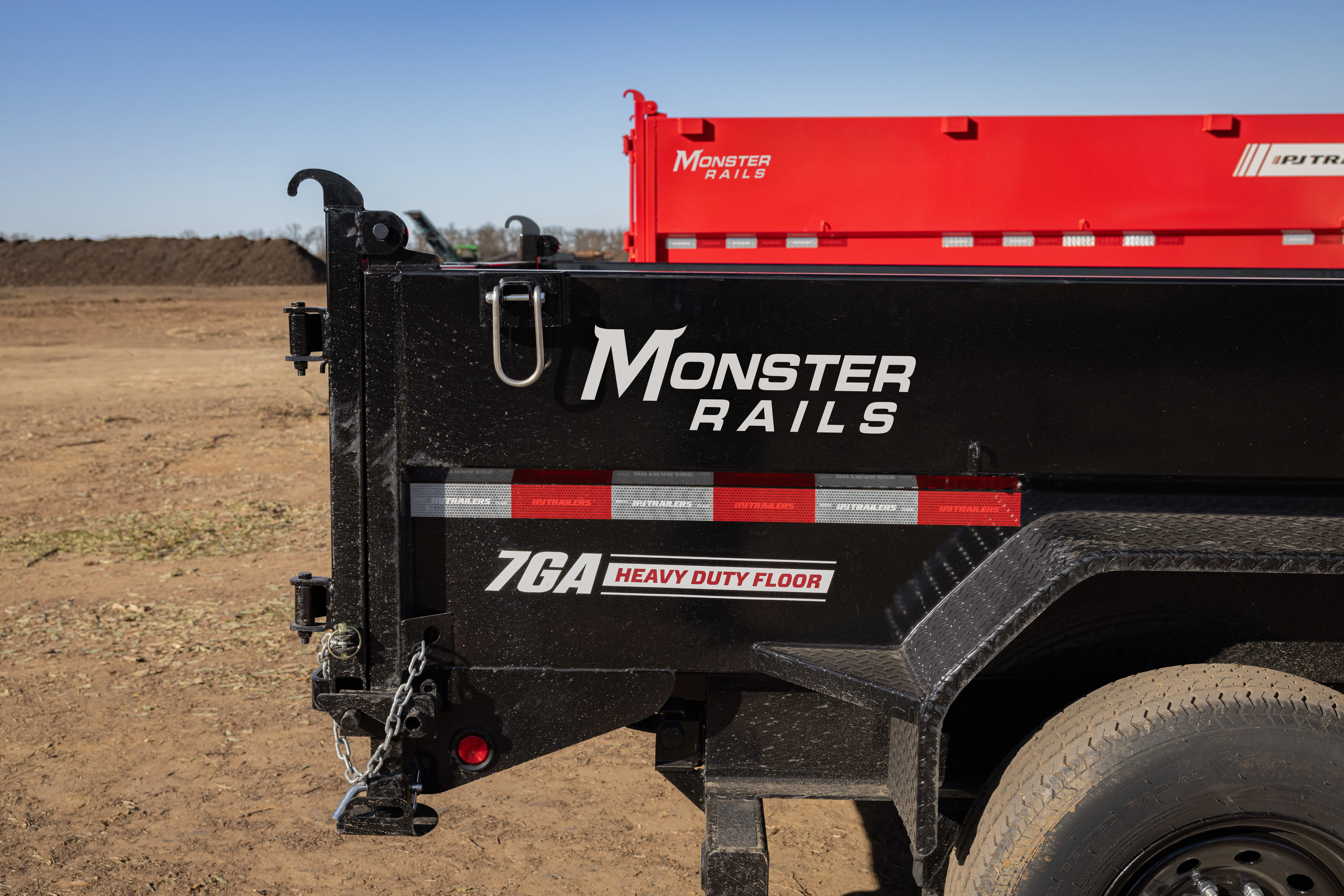

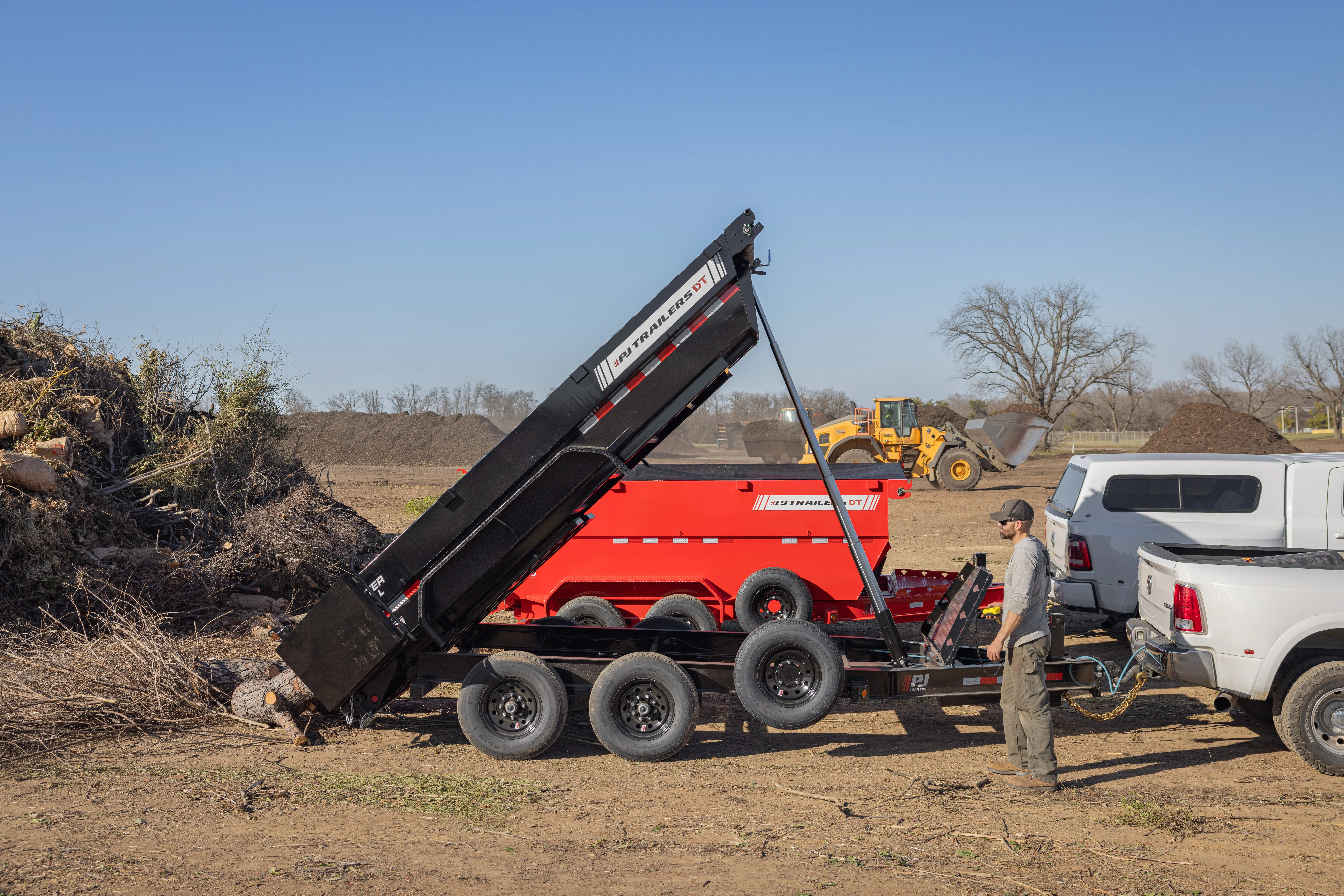

The redesigned DT is a powerful dump trailer with 5-Stage Front-Mount Telescopic Cylinder technology, handling heavy loads with ease. The front-positioned cylinder improves accessibility, while the 45° bed angle speeds up unloading. The next-gen PJ dump body features Monster Rails for 30% more strength, and the Demco EZ-Latch and Monster-Sized Toolbox offer added convenience. The 4' side version hauls up to 16.3 yd³ of materials, built for performance and longevity.
What Drives You, Drives Us™
Trailer Specifications
83" Bed Width
14' – 14' Bed Lengths
15,400 lbs GVWR
11,420 lbs Load Capacity
| Standard Feature | Click + for Options |
|---|---|
| Axles |
[72BS] (2) 7,000# Electric / Spring
Available Options |
| Suspension | 6-Leaf Slipper Spring Suspension |
| Tongue | 8" x 13 lb. I-beam Tongue |
| Coupler |
[J] BP 2-5/16" Adjustable- Demco EZ-Latch
Available Options |
| Jack |
Drop Leg Jack (12,000 lb.)
Available Options |
| Frame | 8" x 13 lb. I-Beam Main Frame |
| Cross-Members | 3” Channel Crossmembers 16” oc |
| Floor | 7ga. Steel Bed |
| Fenders | 1/8" Treadplate Steel Fenders |
| Ramps | 6' 5" Slide-In Channel Ramps |
| Stake Pockets | 24" Stake Pocket Spacing |
| Wiring | All-Weather Wiring Harness (7-way RV) |
| Tires | ST235/80R16 Radial Tires 10 ply (3,520 lbs.) |
| Spare Tire |
Available Options |
| Paint Color |
[K] Primer + Black Powder Coat
Available Options |
| Tie-Downs |
(4) D-Rings (Welded inside the Box)
Available Options |
| Battery |
12V Deep Cycle Battery
Available Options |
| Sides |
24" 10ga. Steel Sides w/ Monster Rails
Available Options |
| Stabilizers | Rear Stabilizer Stands |
| Steps | Treadplate Step (Both Sides) |
| Tarp | Roll-up Tarp Kit (Pull Bar) 7' x 20' |
| Tail | [T] Split / Spreader Gate |
| Dump Gate | 2-Way Gate (Barn Doors & Spreader Gate) |
| Other Options |
Available Options |
| Model | Pull Type | GVWR | Empty Weight | Bed Length | Bed Width | Tongue Length |
|---|---|---|---|---|---|---|
| DT1 14' | Bumperpull | 15400 lbs | 3980 lbs | 14 | 83" | 4' 10" (58") |
WARNING: This product can expose you to chemicals including Arsenic (inorganic arsenic compounds) which is known to the State of California to cause cancer and Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
